Automatic cooler fan motor stator production line

Release time:2020/07/15

Automatic cooler fan motor stator manufacturing process

Automatic cooler fan motor stator production line.jpg

The Full Automatic Cooler Fan Motor Stator Assembly line includes automatic stator slot insulation paper cutting and forming machine, automatic stator core marking machine, stator automatic winding machine, automatic stator coil winding insertion machine, automatic stator winding pre-shaping machine, automatic stator coil lacing and stator winding final forming machine. NIDE fully automatic electric motor stator assembly lines can not only help you speed up your production efficiency and reduce labor costs, but also improve your quality assurance.

1. Cooler Fan Motor stator paper inseting machine

Cooler Fan Motor stator paper inseting machine-1.jpg

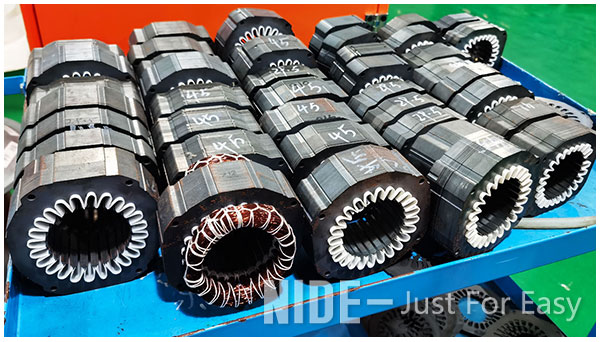

Cooler Fan Motor stator paper insetion.jpg

2.Cooler Fan Motor stator coil winding and inserting machine

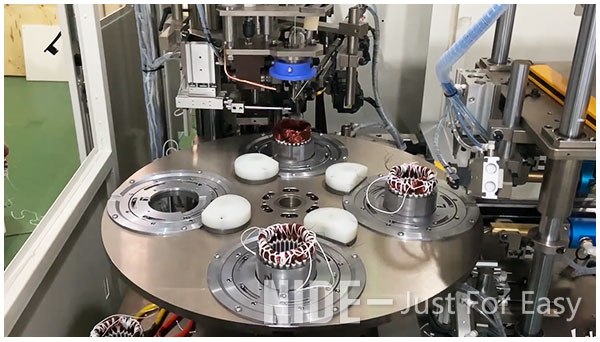

Cooler Fan Motor stator coil winding and inserting machine-1.jpg

Cooler Fan Motor stator coil winding and inserting machine-2.jpg

3.Cooler Fan Motor Stator coil forming and shaping machine

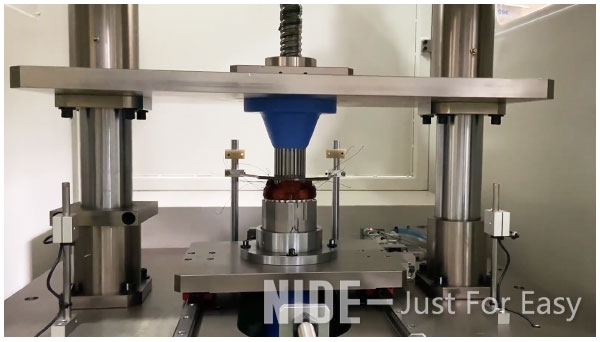

Cooler Fan Motor Stator coil forming and shaping machine.jpg

4.Cooler Fan Motor Stator coil lacing machine

Cooler Fan Motor Stator coil lacing machine.jpg

Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.

Cooler Fan Motor Stator assembly line.jpg

automatic cooler fan motor assembly line.jpg
