Automatic Induction Motor Manufacturing Stator Coil Winding Lacing Machine
Model number:BXSIIL4-100-160B
Introduction:The automatic stator coil lacing machine is suitable for induction motor manufacturing, such as air conditioner motor,washing machine motor, compression motor, fan motor, generator motor and pump motor.
- Specification
Automatic induction motor manufacturing stator coil winding lacing machine
(1) Application
The automatic stator coil lacing machine is suitable for air conditioner motor,washing machine motor, compression motor, fan motor, generator motor and pump motor.
(2)Machine main function and characteristic
1.This motor stator coil lacing machine machine adopts turntable plates structure with four working station,
2.It is equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and ect.
3.Overhang winding adopts twin needle lacing simultaneously. Needle transpositioning, hooking and stator indexing are controlled by five spindle servo system.
4.Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing.
5.With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.
6. It is suitable for mass production and greatly save time and labor cost.
(3) Technical data

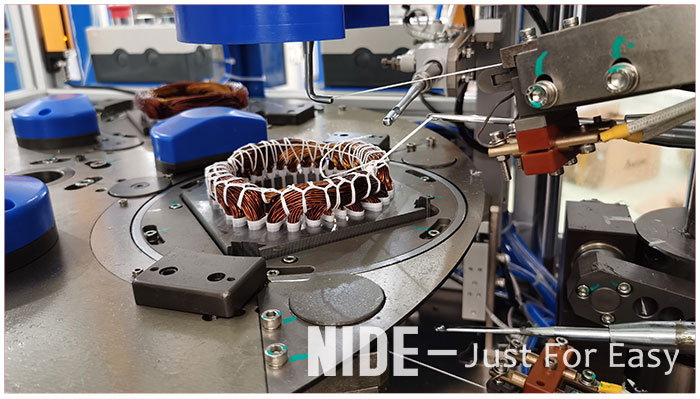

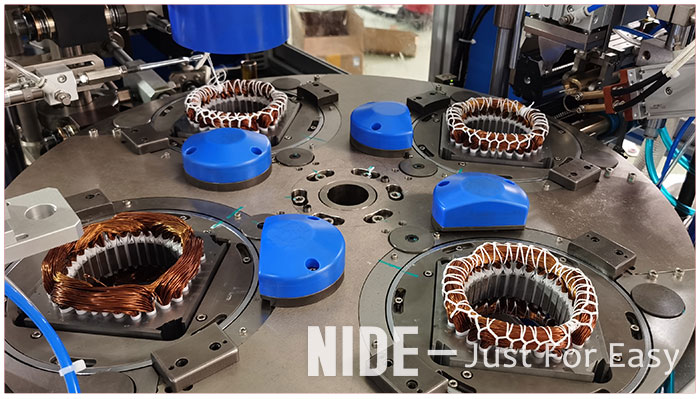

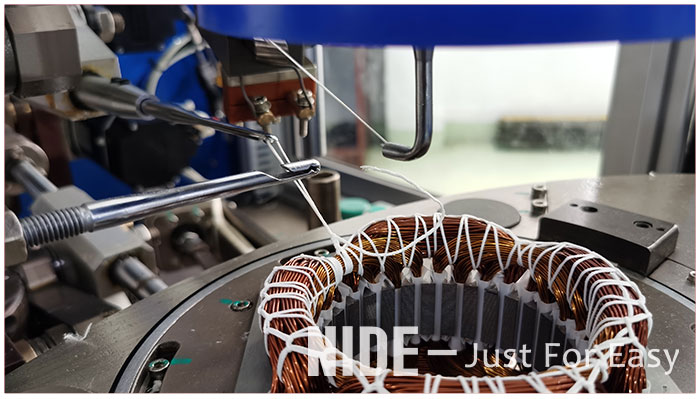

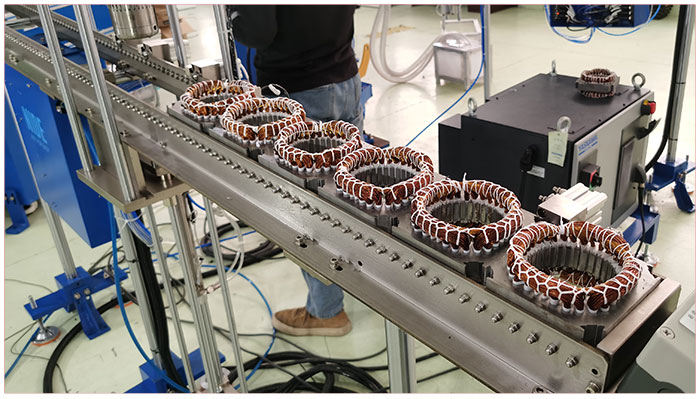

Product name 4 stations double end motor stator lacing machine Stator OD: φ40-φ160mm Stator ID: ≤100mm Stack Height: 30-160mm Height of Coil: ≤65mm Pitch time: ≤14s/pc(24 slots) Air Pressure: 0.4-0.6MPa Power supply: 380V 50/60Hz 6Kw Weight: ≈1500Kg Dimension: (L)2000×(W)1100×(H)1900mm (4) Picture show
