Automatic Servo Stator Manufacturing Production Line

Servo Motor Stator Automatic Manufacturing Line

This automatic stator production line is suitable for servo motor stator manufacturing. This line includes wedge inserting machine, winding and inserting combination machine, four-station pre-forming and expansion machine, middle forming machine, double-sides lacing machine, final forming machine, slot expanding machine, KUKA manipulator, double-speed chain, belt line, circular plate chain line, working table and other machines.

Basic Specification

Production Process

Manually loading→ Paper inserting→ Coil Inserting for primary→ Expanding→ Manually wire sorting→ Coil inserting for secondary→ Expanding→ Manually wire sorting→ Coil inserting for third phase→ End pre-forming→ Manually putting phase paper→ Manually lead wire welding→ Pre-lacing lead wires→ Middle forming→ Lacing→ Final Forming→ Manually unloading

Technical Proposal

Cycle time for whole line: Within 240 sec/pc

The machines are equipped with following designs:

-Servo drive

-Fast-to-change tooling, with convenience and efficiency

-Complete and reasonable automatic error self-diagnosis function

Servo Motor Stator Line Detail

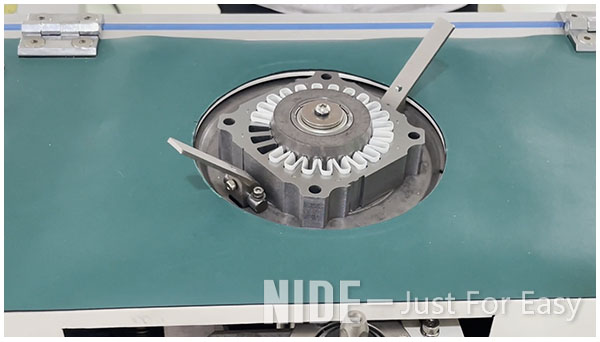

-Stator Slot Paper Inserting Process

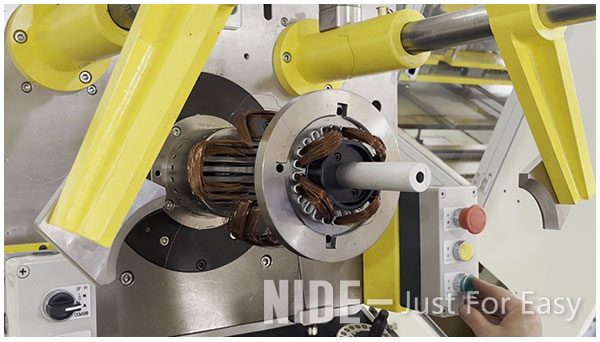

-Stator Coil Inserting Process

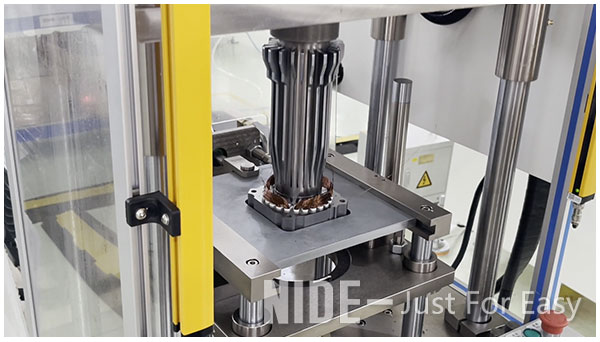

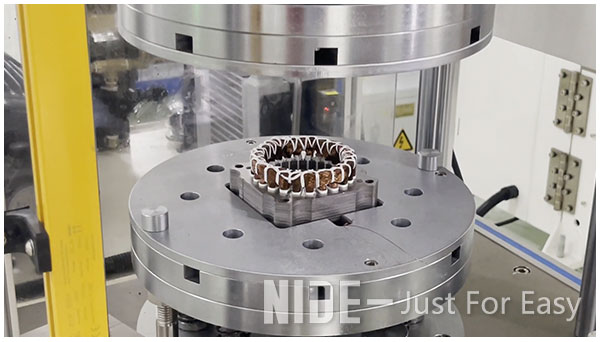

-Stator Coil Forming Process

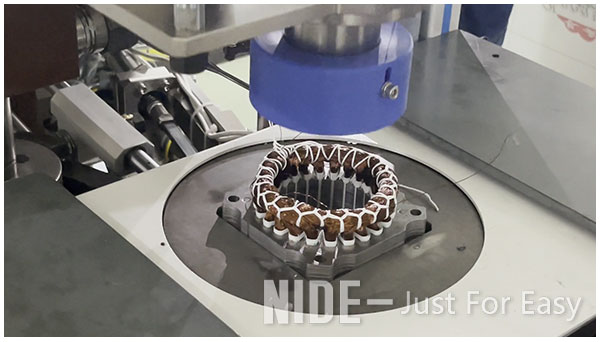

-Stator Coil Lacing Process

Servo Motor Stator Line Video
