The stator coil forming machine is suitable for forming up the small to medium size stator coil，full of technologies and innovations that make industrial processes easy to execute.

1. Stator coil forming machine function and characteristic

This stator coil forming machine adopts whole hydraulic system and PCL program.

With high technology and stable performance, this final forming machine is of highly efficiency and qualified forming.

The machine tooling design adopts flexible principles of inner expansion.

The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing.

The forming process is very easy. Once the start button is pressed, machine will automatically do the forming.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

2, Stator coil forming machine Application

The stator coil final forming machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

3. Stator coil forming machine Technical data

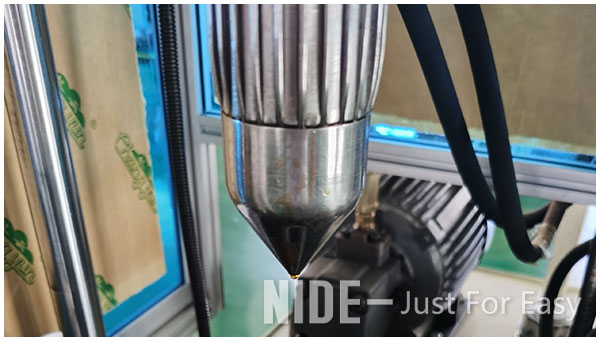

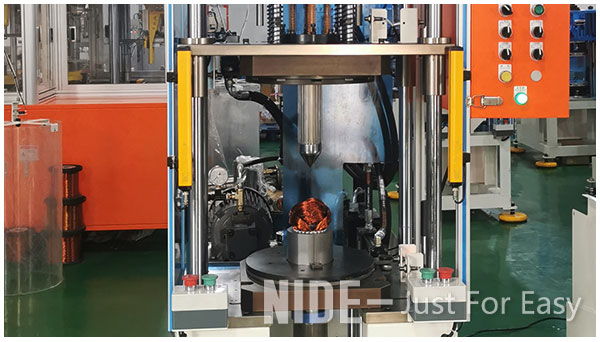

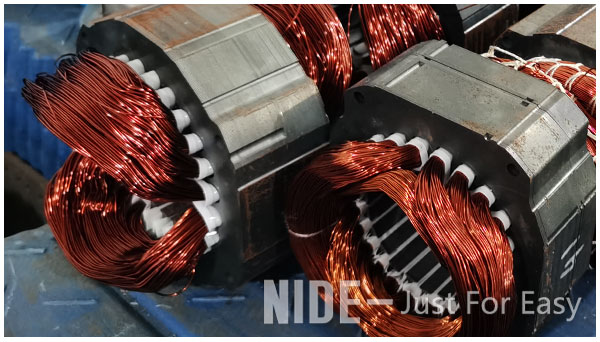

4. Stator coil forming machine Picture show

5. The motor stator coil forming machine video:
