Automatic Wheel Motor Rotor Magnet Inserting Glue Pasting Machine

Model number:ND-MIST
Introduction:The machine automatically pushes the magnets into shape, presses the wheel hub rotor into place at one time, and cooperates with gluing, which greatly improves the efficiency of wheel hub motor manufacturing.

Product video

  • Specification
  • Automatic BLDC Wheel Motor Rotor Magnet Gluing and Pasting Machine


    The machine automatically pushes the magnets into shape, presses the wheel hub rotor into place at one time, and cooperates with gluing, which greatly improves the efficiency of wheel hub motor manufacturing.


    Suitable for electric car motors, electric bicycle motors, electric motorcycle motors, and two-wheeled electric vehicle motors.

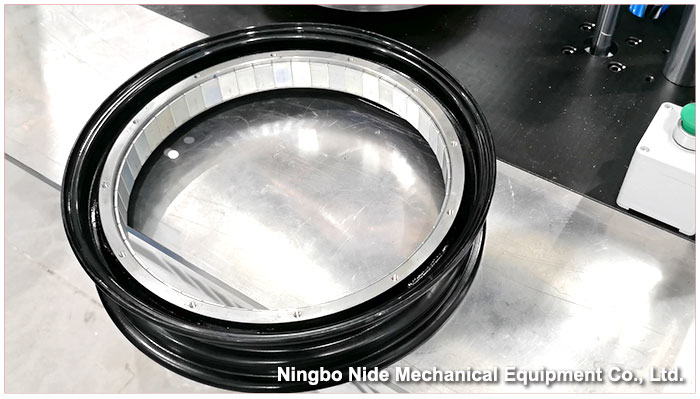

    Automatic Wheel Motor Rotor Magnet Inserting.jpg

    Description:

    The equipment of the automatic magnetic steel insertion machine is divided into a magnetic strip shaping mechanism, a rotor indexing mechanism, an automatic slicing and pressing machine, a glue dropping machine and a residual glue scraping mechanism.


    The magnetic stripe group is manually put into the magnetic strip shaping mechanism for shaping.


    After completion, the machine put the magnetic stripe group into the magnetic stripe storage rack automatically, and then put the rotor into the mold.


    After pressing start, the device automatically clamps the rotor and performs indexing. The glue application mechanism and the magnetic steel insertion machine work together, one-time Push in the two pieces of magnets with N and S poles. The inserting method of the magnets can choose spacer inserts and row inserts.

    Automatic Wheel Motor Rotor Magnet Inserting.jpg

    Automatic Wheel Motor Rotor Magnet Inserting gule machine.jpg

    Automatic Wheel Motor Rotor Magnet Inserting.jpg


    Wheel Hub Motor Assembly Line | Electric Bike Scooter Motor manufacturing video


    Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
