The fully automatic shaping machine automatically grabs the stator and automatically shapes it.Before lacing process, stator coil needs to do forming so as to better do lacing. The Automatic Stator Coil Shaping Machine is special designed for this purpose. It has a wide application and the operation is simple and easy.

(1) Application

This full automatic stator winding forming machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

(2) Technical data

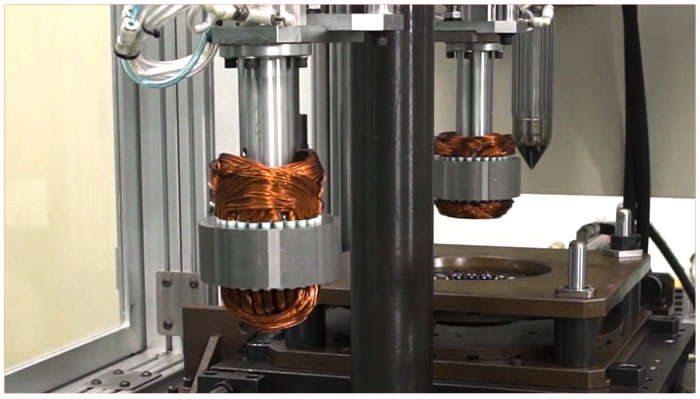

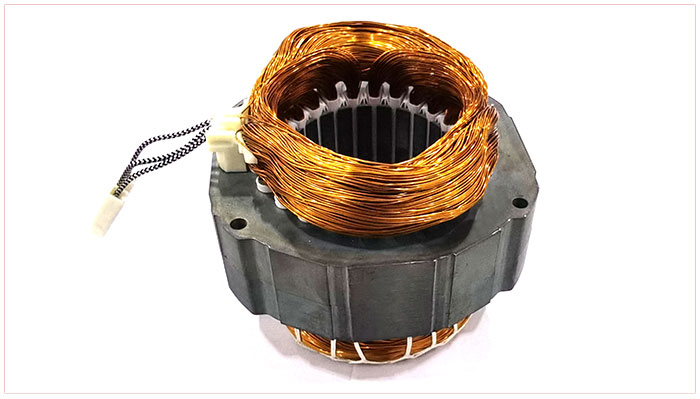

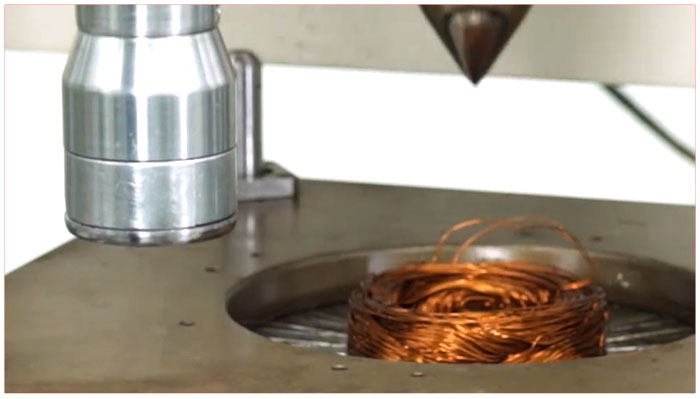

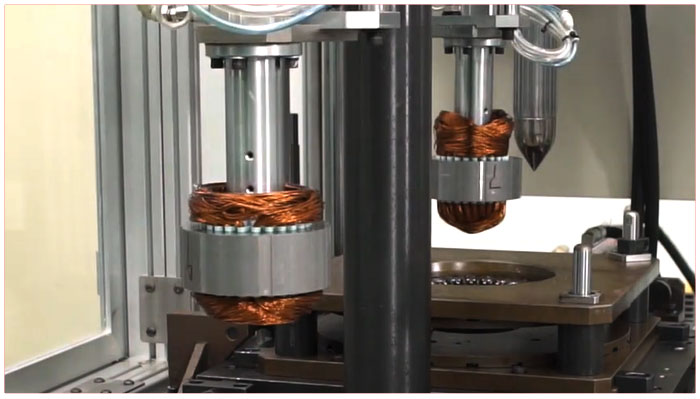

(3) The stator coil forming and shaping machine picture show

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
