Electric Vehicle Motor Winding Machine For Alternator Wave Winding

Model number:BXBW1-55-80G
Introduction:This automatic alternator stator wave winding machine is suitable for automobile alternator and generator stator coil winding.

Product video

  • Specification
  • Automatic electric vehicle alternator stator wave winding machine


    (1). The alternator stator waving winding machine application

    This automatic alternator stator wave winding machine is suitable for electric vehicle motor winding, automobile alternator and generator stator coil winding.


    (2). The electric vechicle alternator stator wave winding machine main feature:

    The alternator stator coil winding spindle drive by servo motor,wire feeding,cutting and winding are completed automatically. It could use for one wire or two wire parallel winding,transfer form indexing is automatically, this alternator motor winding machine can be winding two coils.

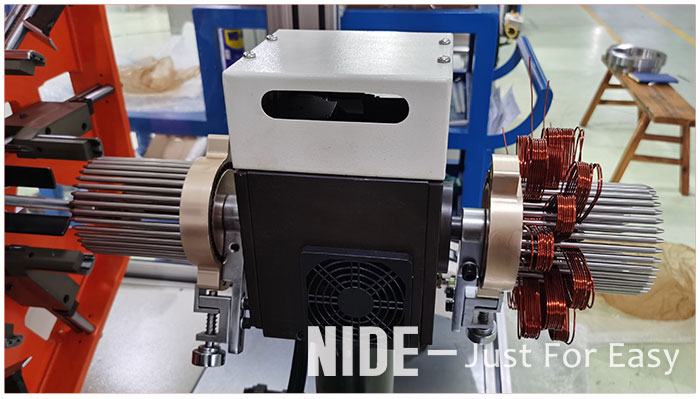

     alternator stator wave winding machine.jpg

    (3). The alternator stator winding machine technical paramenter

    Product name: Automatic electric vehicle alternator stator waving winding machine
    Wire diameter: 0.5~1.8mm
    Max stack height: 55mm
    Max stator OD: 160mm
    Max stator ID: 80mm
    Jump file number: 250RPM
    winding stations: 2
    Air source: ≥0.4MPa
    Power supply: 380V 50/60HZ 4KW
    Weight: about 1200KG, customized
    Dimension:(L)1850*(W)2100*(H)2000mm ,customized


    (4). The alternator stator wave winding machine picture show


    alternator stator waving winding machine.jpg

    electric vehicle alternator stator waving winding machine.jpg

    alternator stator waving winder.jpg

    auto car alternator stator waving winding machine.jpg



    The alternator stator wave winding machine video
