Automatic BLDC Motor Rotor Magnet Inserting Machine

This rotor magnet inserting machine is suitable for the automatic insertion of the magnetized magnetic stripe in the brushless motor rotor, automatic load/unload.

The rotor magnet inserting process is critical to the performance of the electric motor. If the magnets are not inserted correctly or are not securely attached to the rotor, it can lead to reduced performance or even motor failure. Therefore, it is important to follow strict quality control procedures during the assembly process to ensure that the rotor is properly constructed and balanced.

Introduction

The BLDC motor rotor magnet inserting machine automates the process of inserting the permanent magnets onto the rotor, ensuring that the magnets are precisely positioned and securely attached. This improves the efficiency and consistency of the manufacturing process, while also reducing the risk of errors or defects.

Technical parameter

Application

BLDC motor rotor magnet inserting machines are used in the manufacturing process of electric motors, specifically in the process of installing permanent magnets onto the rotor. The rotor is the rotating part of the motor that interacts with the stator to produce the motor's rotary motion. The permanent magnets on the rotor are a critical component of the motor, as they provide the magnetic field that interacts with the stator windings to produce torque.

Rotor magnet insertion structure

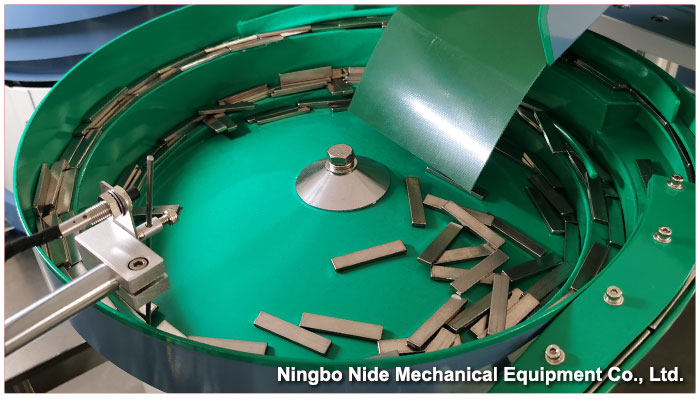

The rotor magnet inserting machine typically includes a magnet handling system, a rotor positioning system, and a magnet insertion system. The magnet handling system is responsible for picking up the magnets and transferring them to the insertion system. The rotor positioning system ensures that the rotor is correctly aligned and positioned for the magnet insertion process. The magnet insertion system uses a mechanical or hydraulic press to insert the magnets onto the rotor.

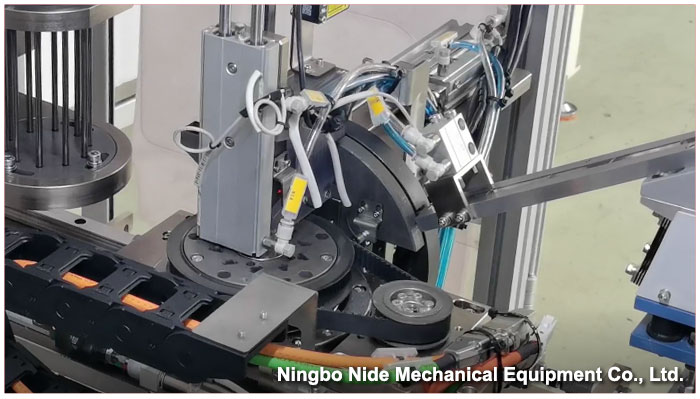

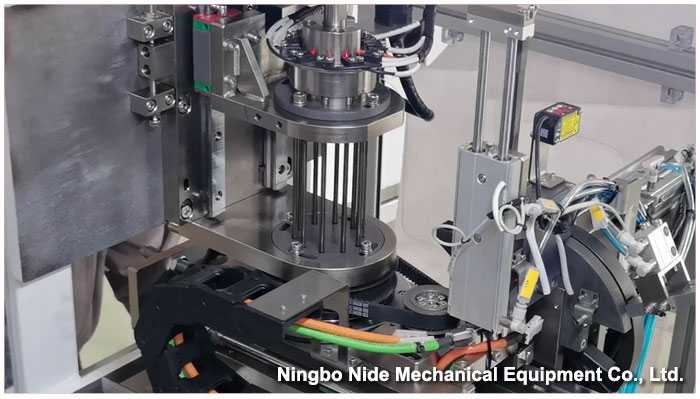

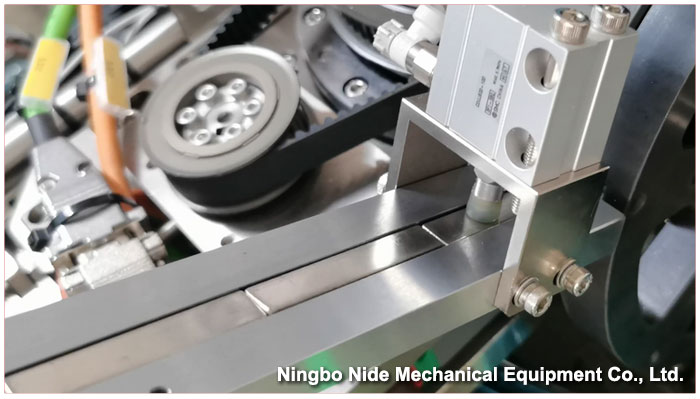

The equipment of the automatic magnetic steel insertion machine is divided into a magnetic strip shaping mechanism, a rotor indexing mechanism, an automatic slicing and pressing mechanism, etc. The magnetic stripe group is manually put into the magnetic strip shaping mechanism for shaping and shaping. After completion, put the magnetic stripe group into the magnetic stripe storage rack, and then put the rotor into the mold.

Automacit BLDC motor rotor magnet insertion process
