Four-Station Automatic Rotor Aluminum Die Casting Machine

for Ceiling Fan Motors

Our automatic centrifugal die casting machine is engineered for efficient, precise, and high-volume

production of ceiling fan motor rotors. Utilizing a four-station aluminum casting system, this equipment

significantly improves manufacturing throughput and consistency while minimizing manual labor.

Key Features & Benefits:

• Full Automation: The machine handles the complete casting process—from aluminum melting

  and automatic rotor loading/unloading to die casting, cooling, shaping, and aluminum scrap

  recycling—with minimal operator intervention.

• High Efficiency: The four-station rotary system enables continuous casting cycles with a cycle time

  of 15–20 seconds, ensuring high production output.

• Safe & User-Friendly Operation: Designed with operator safety in mind, the machine requires only

  a single operator to initiate the process via a simple “Start” button. Built-in anti-spatter protections

  prevent aluminum splash injuries.

• Versatile Integration: Includes aluminum melting tank, oven pre-heating, robot arm material handling,

  shaping station, discharging platform, and automatic scrap recovery system.

Applications:

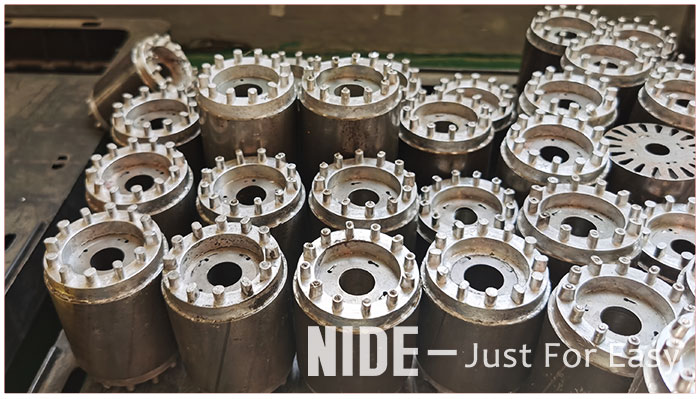

• Ceiling fan motor rotors

• Small electric motor aluminum rotors

• Low-power motor core casting in HVAC and appliance industries

Technical Specifications:

Main Cylinder:

• Mold locking force: 500 kN

• Mold locking stroke: 400 mm

Injection Cylinder:

• Injection stroke: 150 mm

• Injection force: 70–300 kN

• Aluminum capacity: 20 L

• Aluminum depot OD: 75–90 mm

• Punching head OD: 75–90 mm

• Injection head stroke: 55 mm

• Max rotor OD: 85 mm

• Max rotor stack height: 90 mm

• Cycle time: 15–20 s

Motors & Pumps:

• Pump motor: 7.5 kW

• Divider motor: 0.75 kW

• Hydraulic oil pump: 40Y plunger pump

Machine Dimensions:

• Main frame: 1800×1800×2500 mm

• Oil tank & electrical unit: 1500×1000×900 mm

• Turntable OD: 1000 mm

Cooling System:

• Submersible pump power: 1.5 kW

• Flow rate: 5 m³/h

• Water pressure: 0.4 MPa

Aluminum Casting Machine Technical Picture

Aluminum Casting Machine Video
