Alternator Stator Automatic Wave Winding Machine

Model number:BXBW1-55/80
Introduction:This machine is especially suitable for automobile alternator stator coil winding.

Product video

  • Specification
  • This wave stator winding machine is suitable for alternator stator winding. It will wind the coil into the tooling automatically. Normally a winding inserting machine will be needed. Also customer can do the coil inserting manually.


    (1). Machine main function and characteristic

    Winding spindle driving by servomotor, wire feeding, cutting and winding are automatically completed, it could use one wire or two wire parallel winding, transfer form indexing is automatical, the automatic stator winding machine is especially suitable for automobile alternator stator coil winding.

    automobile alternator stator winding machine

    (2). Technical paramenter

    • Wire diameter: 0.5~1.8mm

    • Max stack height: 55mm

    • Max stator OD: 160mm

    • Max stator ID: 80mm

    • Jump file number: 250RPM

    • Air source: ≥0.4MPa

    • Power supply: 380V 50/60HZ 4KW

    • Weight: about 1200KG

    • Dimension(L)1850*(W)2100*(H)2000mm


    (3). Application

    This automatic stator coil winding machine is especially suitable for automobile alternator stator coil winding.

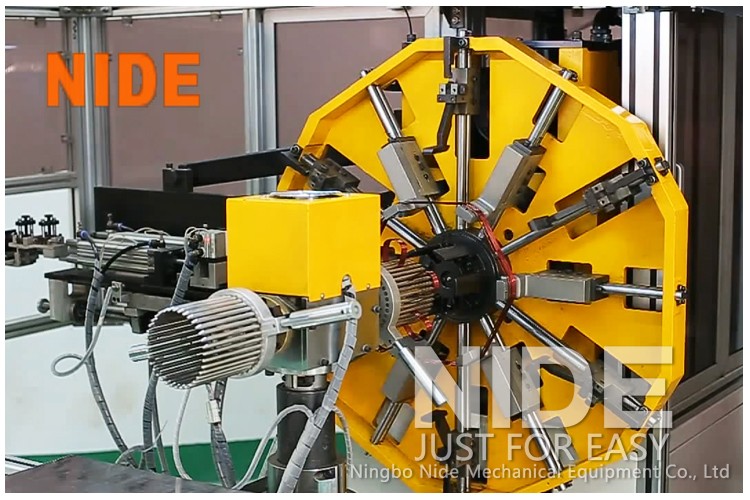

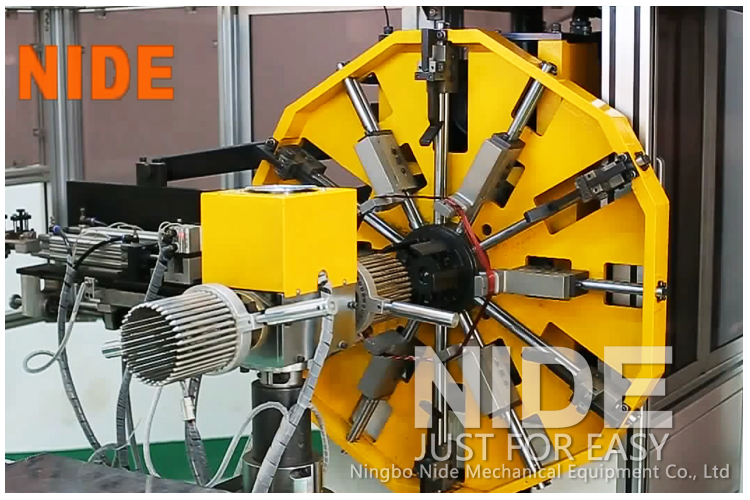

    (4)Wave widning machine working station piece

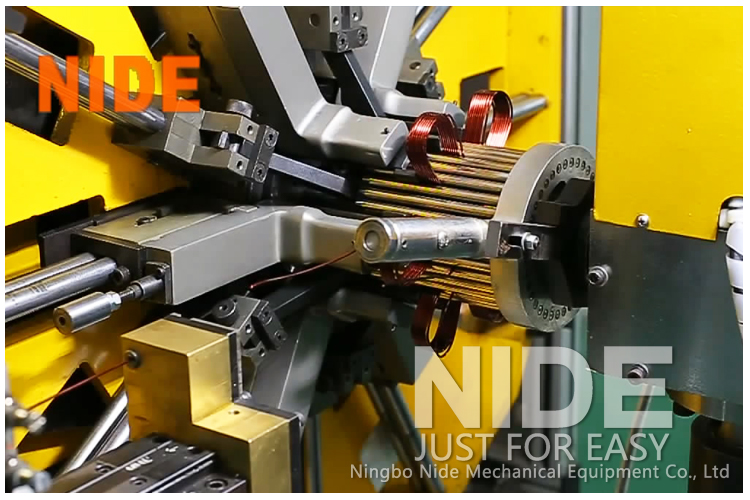

    wave winding machine

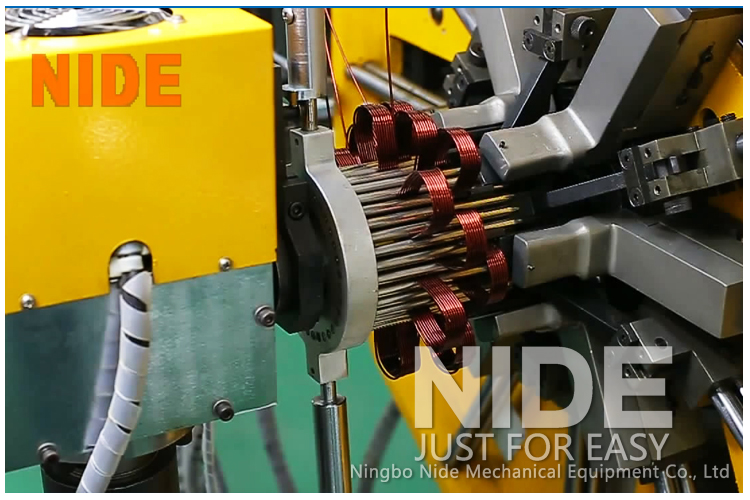

    alternator stator winding machine

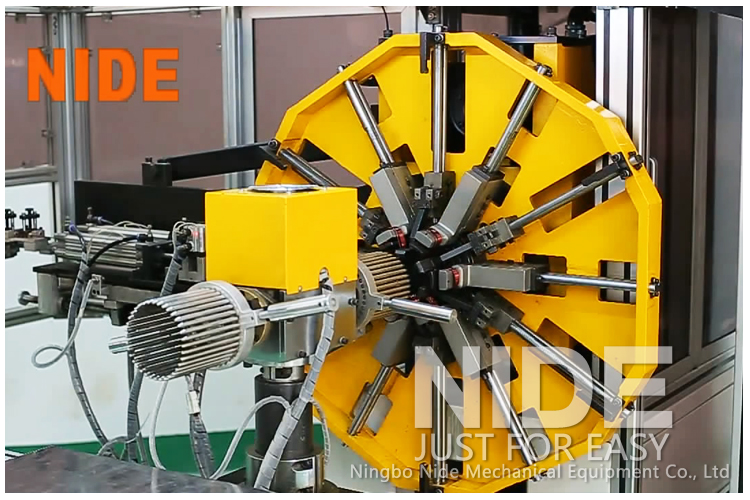

    alternator stator coil winding machine



    (5)The Alternator Stator Automatic Wave Winding Machine youtube video

    About Motor stator manufacturing

    Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
