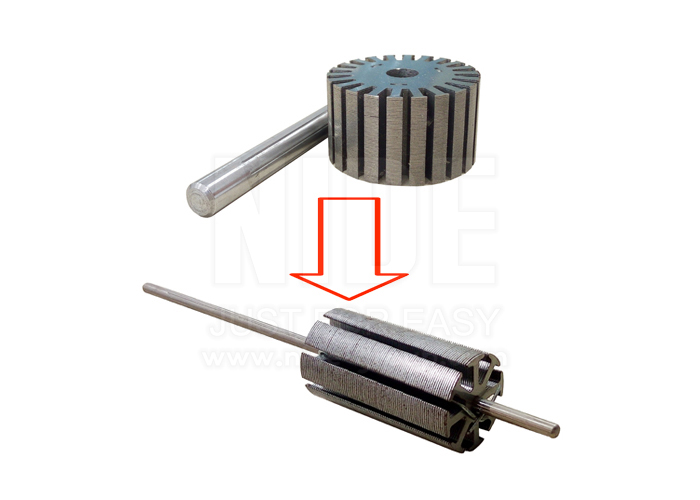

This shaft inserting machine can press the shaft into armature core automatically. Machine is easy to operate by press "start" button. It has a wide application.

(1) Machine function and characteristic

Machine can automatic feeding shaft and armature core, operator only need to load and unload the workpiece. High efficiency and precision, machine could check the core height and pressure. It could be equipped with conveyor.

(2)   Main technical parameter:

• Armature O.D ：20~60mm

• Shaft length：32~250mm

• Air supply ：4-6kg/cm2

• Power supply：Three phase 380V,50.60Hz

• Total power： 4KW

• Weight：about 2200Kg

• Dimension：1200*1100*2000mm

(3) Application

This machine is suitable for home appliance, car and power tooling motor armature.

About Motor armature manufacturing

Motor armature / rotor manufacturing production assembly line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine, ball bearing inserting machine, and worm shaft inserting, NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.
