Home > Products >4 stations motor stator coil winding and inserting machine

4 stations motor stator coil winding and inserting machine

Model number:R3QL1-120-150B
Introduction:This full automatic motor stator coil winding and inserting machine is suitable for miniature induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors, generator motors, and pump motors, etc.

Product video

  • Specification
  • 1. The main Features and Functions

    The motor stator coil winding and inserting machine is a four-station automatic coil winding and coil inserting machine with three-head winding and one-head coil inserting, which collects A-phase winding, phase-to-phase insulation ferrule, groove-making, B-phase winding, phase-to-phase insulation ferrule, C Phase winding wire weaving, phase-to-phase insulation ferrule on one machine. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer. The coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen. With six stations wokring at the same time, the stator coil winding and inserting machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.

    The coil winding and inserting machine uses the German Beckhoff CNC system as the control center; the Huichuan servo motor is the actuator; the Autonics sensor is the signal acquisition component. The data display and input adopt a touch monitor.

       The product is mature in technology, advanced in technology, reliable in quality, and convenient to use and maintain.

    2. Application

    This motor stator coil winding and inserting machine is suitable for miniature induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors, generator motors, and pump motors, etc.

    3. Technical parameters

    Product name :

    4 stations motor stator coil winding and inserting   machine

    Stator OD:

    ≤φ150mm

    Stator ID:

    40-80mm

    Stack Height:

    30-80mm

    Appropriate Wire:

    φ0.2-φ1.2mm

    Height of Coil:

    2

    Winding stations:

    3

    Coil inserting stations:

    1

    Winding inserting mode:

    chained     /same core

    Power supply:

    380V  50/60Hz

    Watt :

    15Kw

    Weight :

    ≈4000Kg

    Dimension:

    (L)4050×(W)3000×(H)2500mm

    4.The picture display

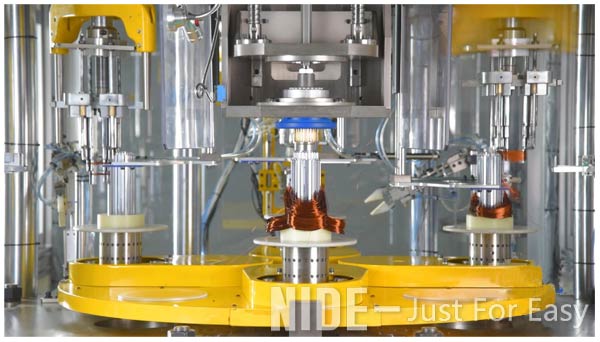

    Overall display of the winding machine

    motor-manufacturing-stator-coil-winding-machine

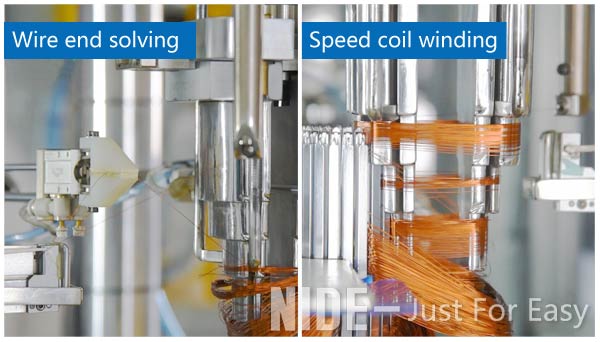

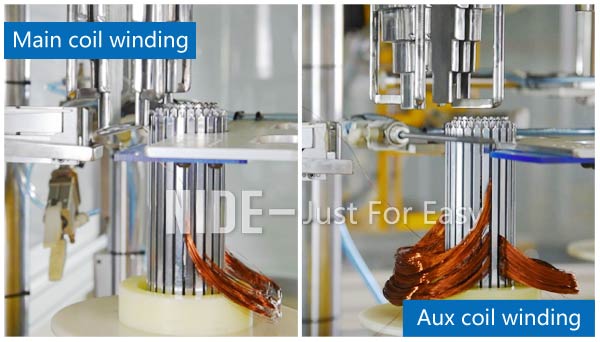

    Winding process display

    motor-manufacturing-stator-coil-winding-machine and inserting machine

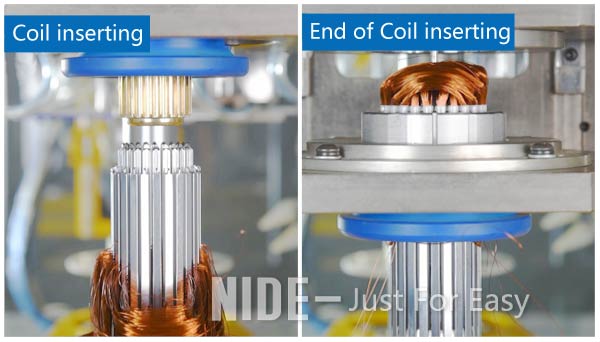

    Coil insertion process display

    stator winding machine and stator coil inserting machine

    The motor stator coil winding and inserting machine youtube video



    About Motor stator manufacturing

    Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

    stator manufacuturing machine
