(1)  Machine main function and characteristic

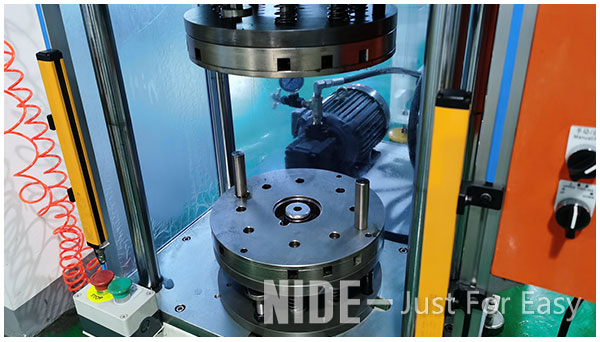

This stator coil forming machine adopts whole hydraulic system and PCL program.

With high technology and stable performance, this final forming machine is of highly efficiency and qualified forming.

The machine tooling design adopts flexible principles of inner expansion.

The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing.

The forming process is very easy. Once the start button is pressed, machine will automatically do the forming.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

(2) Technical data

Stack length: 20~150mm

Stator ID: 30~110mm

Stator OD: Max. 160mm

Displacement of cylinder: 20L/min

Power: 380V  50/60HZ   1.5KW

Machine weight: about 500kg

Machine dimension: L1080*W850*H2170mm

(3) Application

The stator coil final forming machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

(4) stator coil forming working show

The stator coil final shaping and forming machine working video
