Double stator coil winder and insertion euipment /coil winding and inserting machine

(1) Machine Feature

This winding machine is suitable for single phase motors. The main and auxiliary winding process can be wound at the same time to improve the production efficiency. The stator winding machine monitors the status of each station's materials in real time to prevent equipment failures caused by repeated materials. One person can operate multiple machines,and Unmanned production with robot.

(2) Main technical data

Stator OD：≤φ150mm

Stator ID：≤φ110mm

Stack Height：30-120mm

Height of Coil：3

Winding stations:2

Coil inserting station:1

Appropriate Wire：φ0.18-φ1.2mm

Winding inserting mode：chained   /same core

Pitch time：≤40s/pc

Air Pressure：0.6-0.8MPa

Power supply：380V   50/60Hz 15Kw

Weight ≈4000Kg

Dimension：(L)2000×(W)1300×(H)2300mm

(3) Application:

The elelctric motor stator coil inserting machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

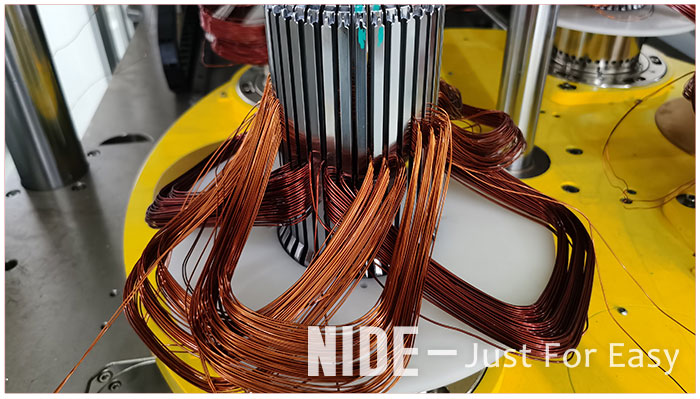

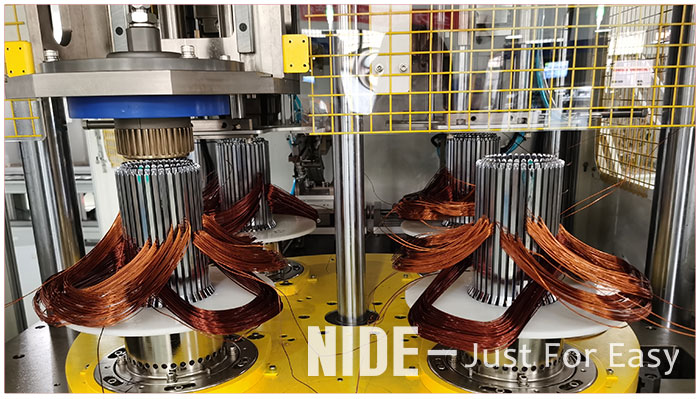

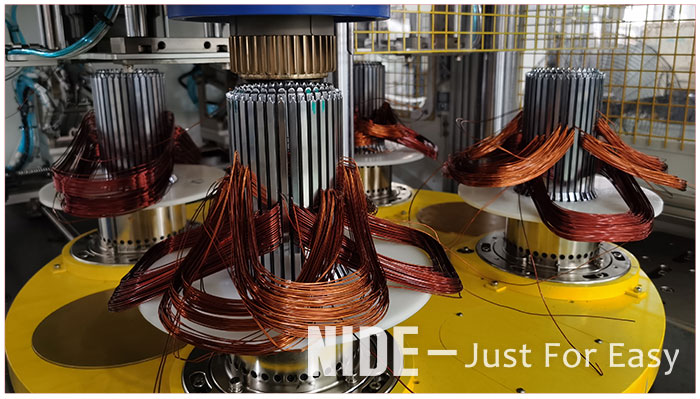

(4)The winder and inserting machine show

The stator coil winding and inserting machine working video

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
