Table fan stator winding machine/coil winding maker

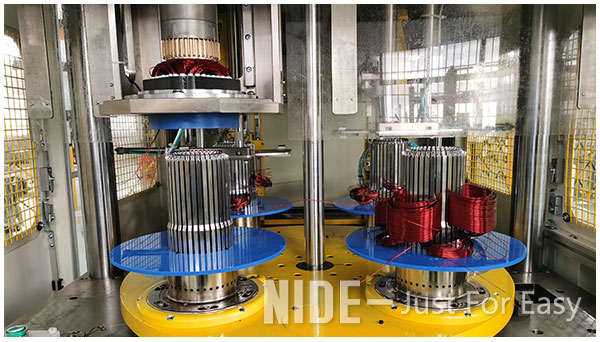

This table fan coil winding machine has two working stations and one coil inserting station. Controlled by PLC, this winding machine can do  auto winding, auto array, auto indexing; array and indexing are controlled by stepping motor, winding is controlled by frequency converting motor, turn number could be accurated up to 0.1 round.

Table fan Winding Machine Application:

Table Fan Coil Winding Machine is suitable for winding fan stator, alternator and generator stator.

Table Fan Winding Machine Technical Parameter:

Wire diameter： 0.05~0.45mm
Stator O.D：100~163mm
Slot number；Less than 24 slots
Stack height： 6~30mm
RPM：Max 2500RPM
Voltage： 3800V/50Hz, or customize
Power：AC 15KW
Weight：2000Kg
Dimension：4050mm*1500mm*2250mm
