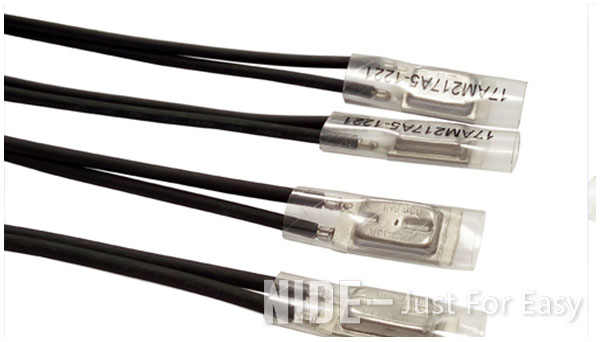

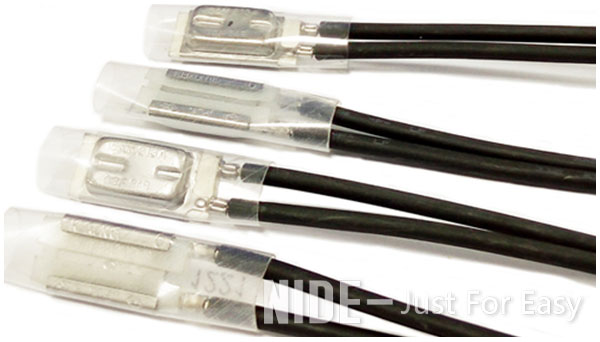

17AM-D series thermal protectors are used to provide effective and reliable safety protection to motors and prevent motors from damage due to overheating. These series thermal protectors are widely applied in the industrial motor under 2HP, such as transformers, power tool, automobile, rectifiers, electro-thermal appliances, etc. With its accurate temperature control, it has double protection of current and temperature.

Temperature specification

Open temperature: 50~155±5℃, one gear per 5℃

Reset temperature: it is 2/3 of standard opening temperature or specified by customers. The tolerance is 15℃.

Contact capacity

They are applicable for more than 5000 cycles under following condition.

Notice:

The thermal protector can not sustain heavy impact during working.

The word side is the temperature sensing surface.

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
