Transformer 6641 DMD F Class Insulation Paper 0.25/0.3mm

6641 DMD F Class Insulation paper is a polyester film polyester fiber non-woven soft composite material , made of polyester fiber non-woven fabric and polyester film. Suitable for transformer, automotive generators, series motors, gearbox motors, three-phase asynchronous motors, stepping servo motors, household appliances motors,

NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.

The 6641 DMD three-layer composite material bonded by F grade resin has a temperature resistance rating of 155°C. It is mainly used for slot insulation, turn-to-turn insulation, gasket insulation, transformer insulation of Y2 series motors or other low-voltage motors. It can also be used for F-class electrical coil insulation.

6641 DMD F Class Insulation Paper Parameter

6641 DMD F Class Insulation Paper Application

    1. Motor product industry: automotive generators, series motors, gearbox motors, three-phase asynchronous motors, stepping servo motors, household appliances motors, power tool motors, slot insulation, slot wedge insulation, phase insulation, insulating gaskets .

    2. Electronic and electrical industry: ballasts, LED power supplies, transformers, filters, transformers, inter-turn gasket insulation.

    3. Wire and cable industry: cable wrapping insulation tape.

    The company has slitting, stamping forming, and testing equipment to ensure the quality of various insulating forming materials.

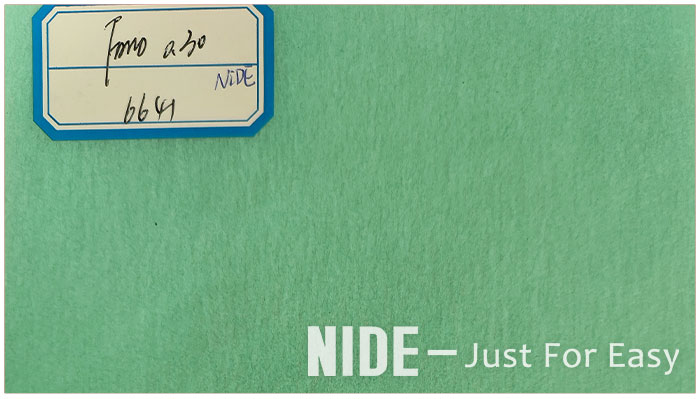

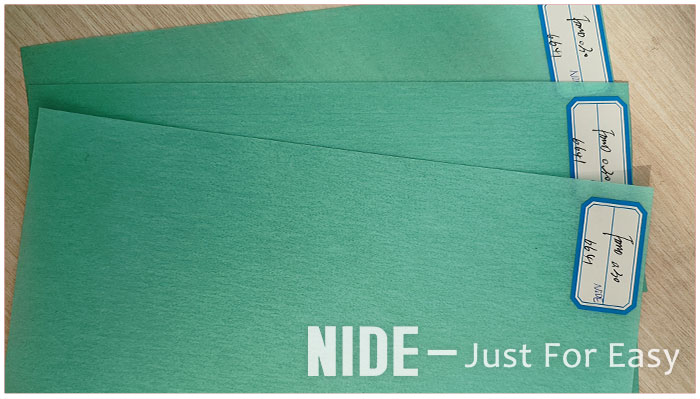

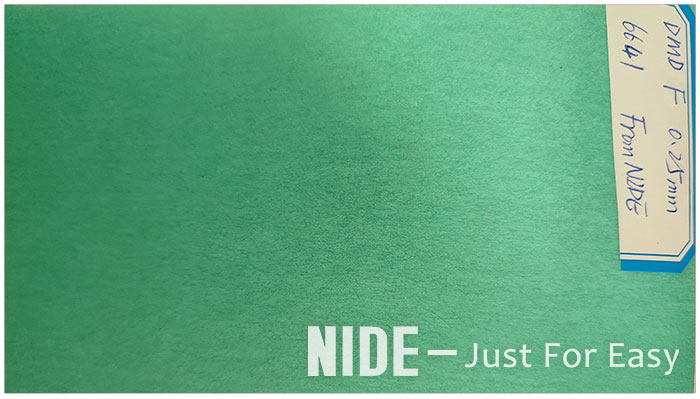

6641 DMD F Class Insulation Paper Picture

NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
