Model :NDPJ-CT-0001
Brief Introduction : Female crimp terminals are used for the connector system.
Auto female crimp terminal for electrical wire connectors
Female crimp terminals are used for the connector system. Made of high quality brass material, strong and durable.These female crimp terminals are matte sealed, have a low insertion forceand.
High elasticity, safe and reliable performance, simple and convenient to use.
Professionally manufactured: Each crimp terminal is tested in a single piece of fine workmanship to ensure perfect performance and reliability.
Easy to install and use:
Crimp Terminal Parameter
| Type | Crimp Terminal |
| Pitch | 4.50mm pitch |
| Material | Phosphor Bronze / Brass Tin /Copper Brass |
| Surface | Tin Coating |
| Wire range | 0.1-4.0mm2 |
| Gender | Female |
| Color | Customized |
| Withstand voltage | 1500V AC/min |
| Connector type | Disconnectable Crimp type, Wire to Wire |
| Temperature range | -25℃~85℃ |
| Insulation resistance | ≥1000MΩ min |
| Contact Resistance | Initial Value≤0.01Ω; After Environment Tests ≤0.02Ω |
| Voltage Rating | 300V AC,DC |
| Current rating | 10A AC,DC |
| Service | ODM, OEM |
Crimp Terminal Application
The Female crimp terminal is widely used in the communication line with current equipment such as low voltage, communication equipment, lighting machinery, ship and other fields. Suitable for auto and home appliance cable wire lup.

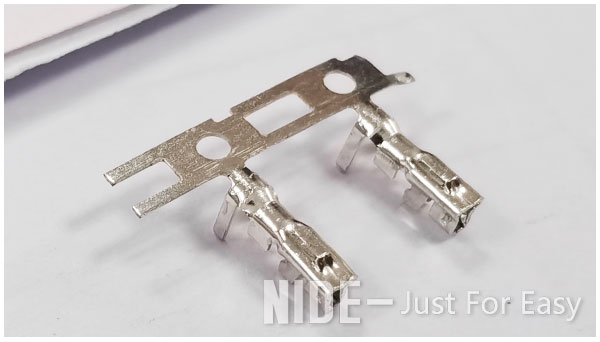

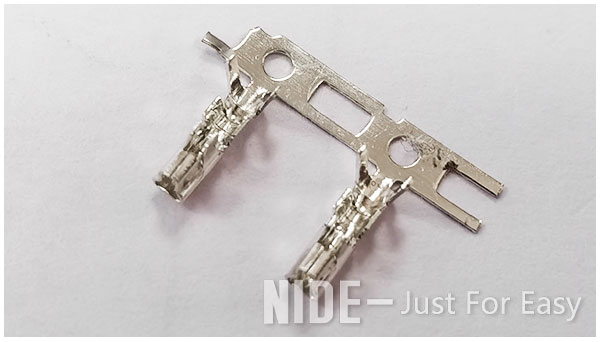

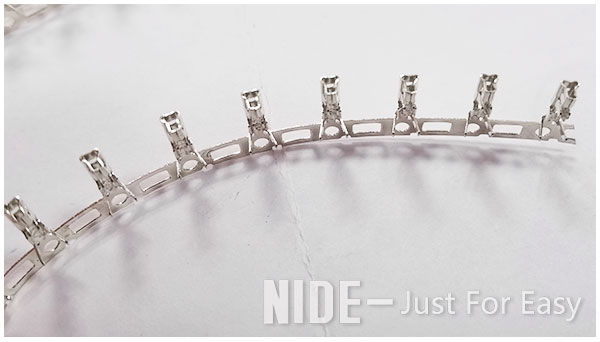

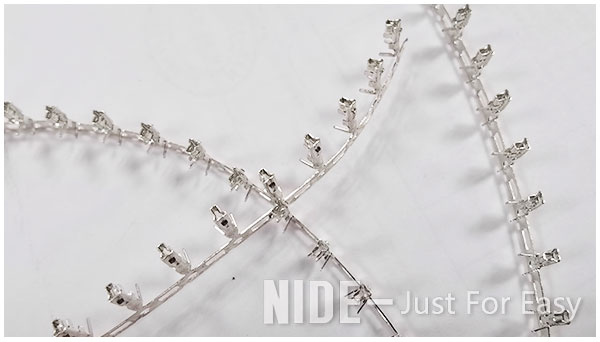

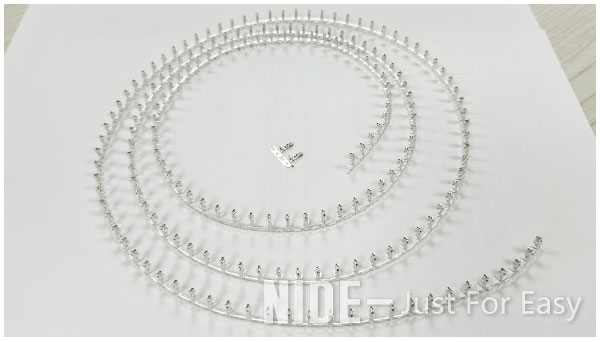

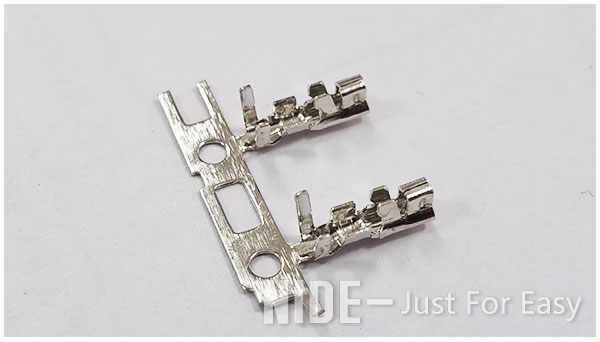

Crimp Terminal Picture
