Model :NDPJ-JYZ-6641E
Brief Introduction : The 6641 Class F DMD Insulation Paper is suitable for general F-class motors as slot, phase insulation and gasket insulation.

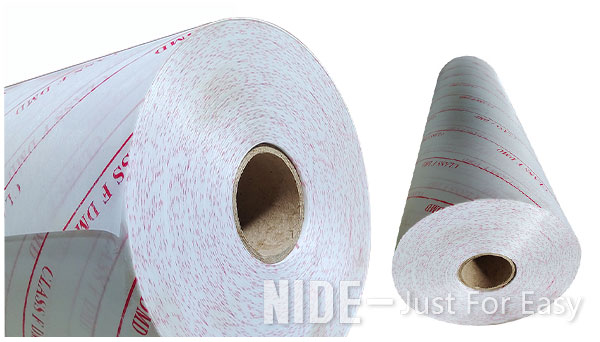

6641 Class F DMD Insulation Paper
6641 Modified polyester film polyester fiber non-woven fabric soft composite material (F-grade DMD) is made of high-temperature-resistant polyester film and special polyester fiber non-woven fabric bonded with F-grade adhesive.
The 6641 Class F DMD Insulation Paper is suitable for general F-class motors as slot, phase insulation and gasket insulation.It is inherent dielectric strength, high toughness, high thermal conductivity, easy to insert, with a certain hardness and resilience, the surface should be uniform, no fuzz, and no defects such as bubbles, pinholes, wrinkles and blemishes.
Class F DMD Insulation Paper Technical Requirements
| Product name: | 6641 F grade DMD polyester film polyester fiber non-woven soft composite material |
| Thickness | 0.1~10(mm) |

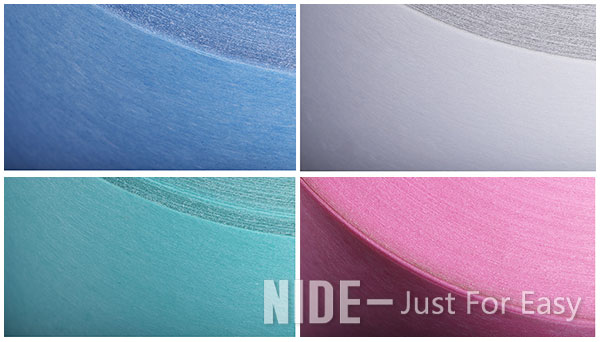

| Color | white, red, blue, green |
| Size | 1000 (mm) can be customized (mm) |
| Packaging Instructions | Special for power supply/transformer/motor electromechanical, etc. |
| Class : | Grade F |
| Features | Dielectric properties and reliable thermal adhesion, high temperature and high pressure resistance |
| Heat resistance | 155℃ |
| Custom processing: | Yes |
| Item No. | 6641 F DMD |
6641 Class F DMD Insulation Paper is mainly used in the following industries
Motor industry: suitable for making slots in the stator windings of automobile generators, three-phase asynchronous motors, electric vehicle motors, etc.
Insulation, pad insulation and turn-to-turn insulation.
Electronic and electrical industry: suitable for inverters, controllers, transformers, etc. for phase isolation, gasket insulation and turn-to-turn insulation.
Wire and cable industry: suitable between cables and cables; insulation and shielding between cables and outer layers.
Automobile manufacturing industry: It is suitable for viscose for sticking balance weights of automobile tires, viscose for automobile seals.
NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
