NM Insulation Paper 0.25x48mm

NM insulating paper is a kind of soft composite material, which consists of two layers of insulating paper made of polyester film coated with adhesive and bonded with calendered polyamide aromatic fiber paper on both sides.

It combines the excellent high temperature resistance of 220 ℃ of DuPont paper, good mechanical toughness and good dielectric strength of polyester film.

It is widely used in electrical equipment, and is suitable for slot insulation, turn-to-turn insulation and gasket insulation of F-class motors.

NM Insulation Paper Performance:

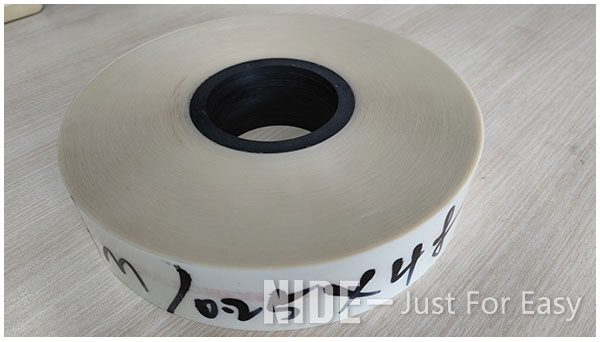

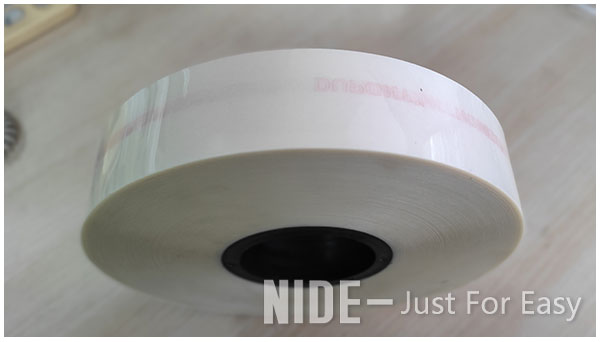

NM Insulation Paper Picture:

NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
