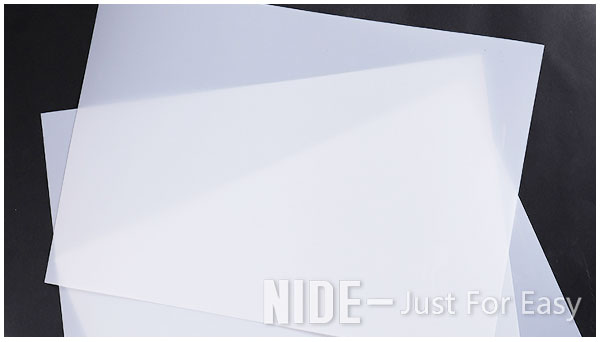

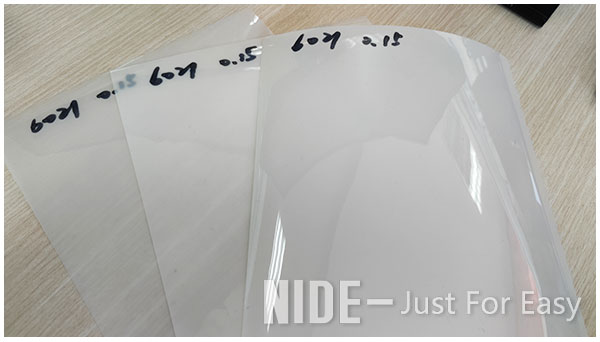

6021 Motor insulating paper milky white PET insulating film slot paper

6021 polyester film for electrical insulation is an opaque film with good dielectric properties and high physical and mechanical properties. It is widely used in medium-sized slot insulation, turn-to-turn insulation, and can also be used in the production of soft composite materials. It is suitable for electrical insulation industry, such as slot insulation, turn-to-turn insulation of motors, coil and cable wrapping insulation, etc. It can also be used to produce insulation soft composite materials.

6021 Motor Insulating Paper Parameter

6021 Motor Insulating Paper Composition

6021 polyester film is made of polyethylene terephthalate (PET) by casting and balanced biaxial orientation.

The heat resistance grade of 6021 polyester film is E (120℃). It is an opaque film with good transparency and flexibility, high mechanical strength and dielectric properties, uniform thickness and glossy surface.

6021 Motor Insulating Paper Application

6021 Motor polyester film, this product is widely used in motors, packaging, printing, clothing and electronics. And for a wide range of users to provide slitting tape, block tape and processing and forming business. Product prices are divided according to quality grades and thicknesses.

During the cutting and use of the product, the edge should be prevented from cracks, and surface scratches and pollution such as oil and dust should be avoided.

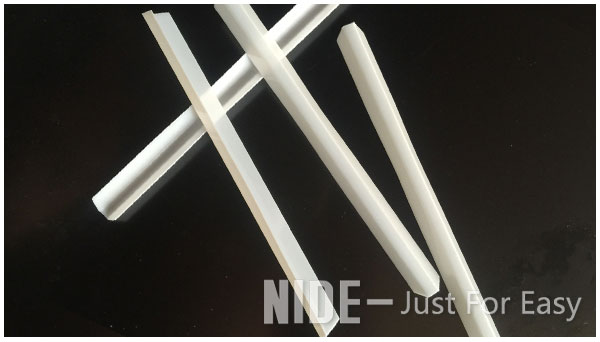

NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
