Model :NDPJ-CBB61-3
Brief Introduction : The Conditioner is suitable for electric fans, range hoods, air-conditioning fans, and bread machines.
CBB61 Air Conditioner Ceiling Fan Capacitor 3UF 450V
CBB61 starting capacitor is suitable for the starting and running of a single-phase motor with a frequency of 50HZ/60HZ AC power supply, and can also play a role in speed regulation of the motor. The CBB61 capacitor is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.
Capacitor Parameter
| Product Name: | AC Motor Capacitor |
| Model: | CBB61 |
| Material: | Metal Plastic; |
| Voltage: | 250VAC、370VAC、440VAC、450VAC 50/60Hz |
| Max.TEMP: | 70°C |

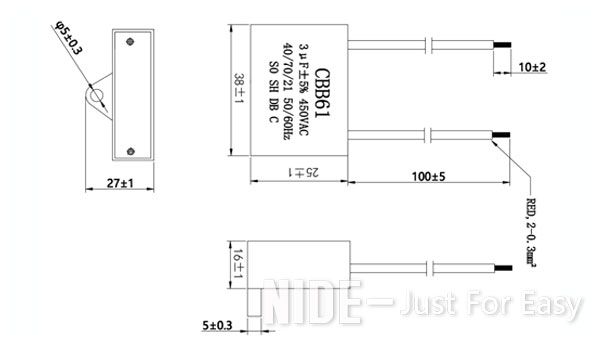

| Size: | 38X27X16MM |
| Reference standards: | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category： | 40/ 70/21、40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | S0 /S3 |
| Capacitance range | 1~35μ F |
| Capacitance tolerance | 土5%、土10%、土15% |
| Dissipation factor | 20x10^(-4) ( 100Hz, 20°C ) |
| Test voltage terminalto terminal UTT | 2Un for 2 seconds |
| Test voltage terminal to caseUTC | (2Un+ 1000)VAC or 2000VAC- 50Hz for 60 seconds |
| RC | ≥3000s (100Hz, 20°C，1min) |
Capacitor Feature:
Self-healing
High stability
reliability

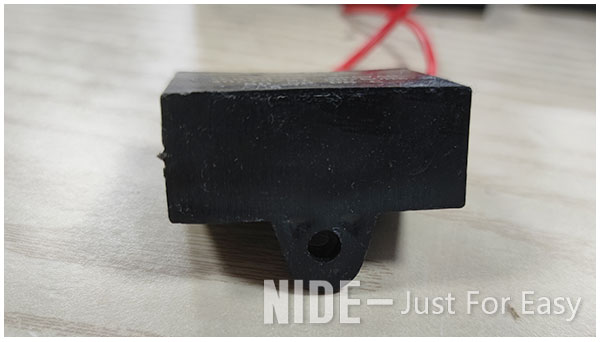

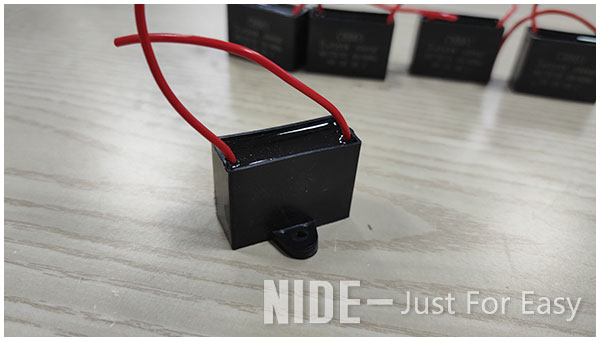

Capacitor Picture:
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
