Model :NDPJ-JYZ-6640
Brief Introduction : We can produce different dimensions of insulation material for stator and armature slot.

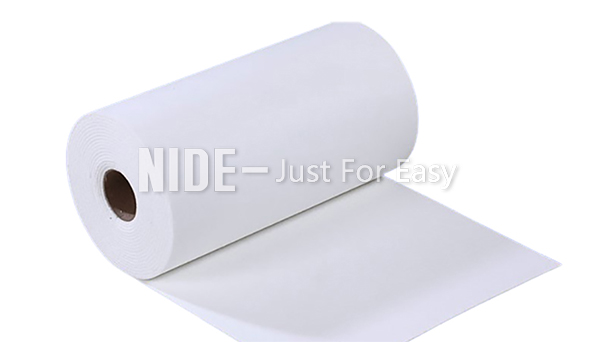

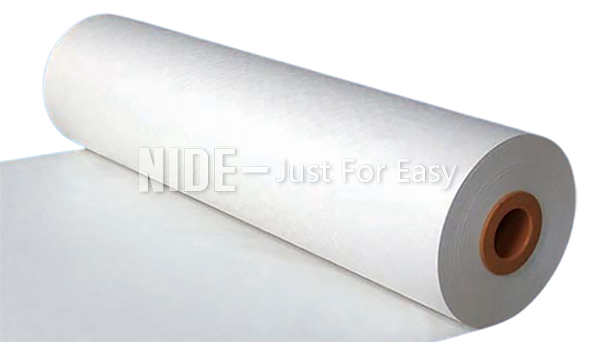

H Class Insulating Paper Aramida
Product Description:

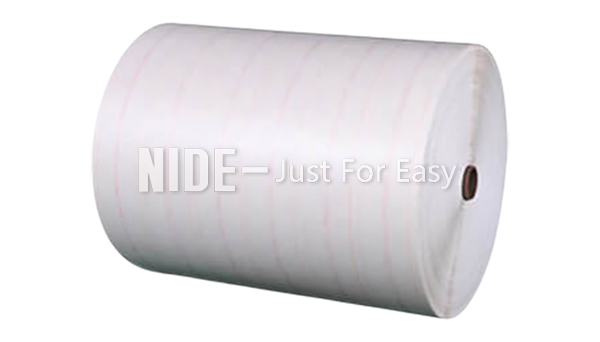

H-grade NMN Aramid Paper is a three-layer composite foil, of which the outer two layers are NOMEX® insulating paper from DuPont, and the inner layer is an electric shock film, which has excellent dielectric properties, flame retardant properties, mechanical properties and high heat resistance. , suitable for slot insulation, turn-to-turn insulation and gasket insulation of H-class motors
It has good electromechanical properties, cut-through resistance and overload resistance, and has good compatibility with common insulating paints, suitable for F-class motor slot and phase-to-phase insulation
We can produce different dimensions of insulation material as per customer's requirement.There are different insulation material, DMD B/F class, Red Polyester film,Class E, Red Vulcanized Fiber, Class A.
advantage:
1. The color is uniform, the surface is smooth and flat, and the color does not fade.
2. Odorless, tasteless, non-toxic, smooth surface, good flexibility, no water ripples on the surface, no crystal points, no double phase whitening, good impact resistance strength (good impact resistance strength at low temperature).
3. Corrosion resistance, excellent insulation, excellent mechanical properties, high rigidity, hardness and toughness, puncture resistance, friction resistance, small thickness tolerance, low thermal shrinkage rate, firmness, low shrinkage, low water absorption, smooth and shiny surface , Creep resistance, fatigue resistance, friction resistance, dimensional stability are very good, high temperature and low temperature resistance, high chemical resistance, oil resistance, good air tightness and fragrance retention, and is also a commonly used barrier property One of the composite film substrates.
PET Class E Specification | |||||||||||||
Item | Unit | Standard | |||||||||||
Thickness | um | 100 | 125 | 175 | 188 | 200 | 250 | ||||||
Tolerance | % | ±3 | ±3 | ±3 | ±4 | ±4 | ±4 | ||||||
Tensile strength | vertical | Mpa | ≥170 | ≥160 | ≥160 | ≥150 | ≥150 | ≥150 | |||||
Horizontal | Mpa | ≥170 | ≥160 | ≥160 | ≥150 | ≥150 | ≥150 | ||||||
Thermal shrinkage | vertical | % | ≤1.5 | ||||||||||
Horizontal | % | ≤0.6 | |||||||||||
Haze | % | ≤2.0 | ≤2.6 | ≤3.5 | ≤4.0 | ≤4.6 | ≤6.0 | ||||||
Wetting tension | ≥52 Dyn/cm | ||||||||||||
frequency electric strength | V/um | ≥90 | ≥80 | ≥69 | ≥66 | ≥64 | ≥60 | ||||||
Thermal class | / | E | |||||||||||
Volume resistivity | Ωm | ≥1x1014 | |||||||||||
Density | g/cm³ | 1.4±0.010 | |||||||||||
Relative dielectric constant | 2.9~3.4 | ||||||||||||
Dielectric loss factor | ≤3x10-3 | ||||||||||||
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)
2. Insulation material dimension: width, thickness, tolerance.
3. Insulation material thermal class: Class F, Class E, Class B, Class H
4. Insulation material applications
5. Required quantity: normally its weight
6. Other technical requirement.
NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
