Corrosion Resistant Insulating Paper For Transformer

Model :NDPJ-JYZ-6021

Brief Introduction : We can produce different dimensions of insulation material for stator and armature slot.

Product Description:

Motor film is a high-grade film made of polyethylene terephthalate as raw material and special polyester masterbatch mixed in a certain proportion, and then dried, melted, extruded, cast and stretched vertically and horizontally.

We can produce different dimensions of insulation material as per customer's requirement.There are different insulation material, DMD B/F class, Red Polyester film,Class E, Red Vulcanized Fiber, Class A.

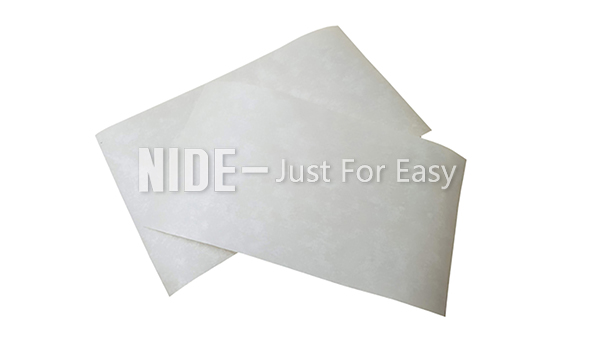

Dmd Insulation Paper4.jpg

advantage:

1. The color is uniform, the surface is smooth and flat, and the color does not fade.

2. Odorless, tasteless, non-toxic, smooth surface, good flexibility, no water ripples on the surface, no crystal points, no double phase whitening, good impact resistance strength (good impact resistance strength at low temperature).

3. Corrosion resistance, excellent insulation, excellent mechanical properties, high rigidity, hardness and toughness, puncture resistance, friction resistance, small thickness tolerance, low thermal shrinkage rate, firmness, low shrinkage, low water absorption, smooth and shiny surface , Creep resistance, fatigue resistance, friction resistance, dimensional stability are very good, high temperature and low temperature resistance, high chemical resistance, oil resistance, good air tightness and fragrance retention, and is also a commonly used barrier property One of the composite film substrates.

PET Class E Specification
Item	Unit	Standard
Thickness	um	100	125	175	188	200	250
Tolerance	%	±3	±3	±3	±4	±4	±4
Tensile strength	vertical	Mpa	≥170	≥160	≥160	≥150	≥150	≥150
Horizontal	Mpa	≥170	≥160	≥160	≥150	≥150	≥150
Thermal shrinkage	vertical	%	≤1.5
Horizontal	%	≤0.6
Haze	%	≤2.0	≤2.6	≤3.5	≤4.0	≤4.6	≤6.0
Wetting tension		≥52 Dyn/cm
frequency electric strength	V/um	≥90	≥80	≥69	≥66	≥64	≥60
Thermal class	/	E
Volume resistivity	Ωm	≥1x1014
Density	g/cm³	1.4±0.010
Relative dielectric constant		2.9~3.4
Dielectric loss factor		≤3x10-3

PET Class E Specification

Item

Unit

Standard

Thickness

100

125

175

188

200

250

Tolerance

±3

±4

Tensile strength

vertical

Mpa

≥170

≥160

≥150

Horizontal

Mpa

≥170

≥160

≥150

Thermal shrinkage

vertical

≤1.5

Horizontal

≤0.6

Haze

≤2.0

≤2.6

≤3.5

≤4.0

≤4.6

≤6.0

Wetting tension

≥52 Dyn/cm

frequency electric strength

V/um

≥90

≥80

≥69

≥66

≥64

≥60

Thermal class

Volume resistivity

Ωm

≥1x1014

Density

g/cm³

1.4±0.010

Relative dielectric constant

2.9~3.4

Dielectric loss factor

≤3x10-3

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.

NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
