Model :NDPJ-JYZ-26
Brief Introduction : The DMD composite insulating material is suitable for general type and humid tropical type electric tank insulation, turn-to-turn insulation and liner insulation for class F insulation, and can also be used as transformer coil insulation.
Customized polyester film composite insulating paper-6641 F grade DMD motor slot paper insulating material
1. Features
The composite insulating material paper has good dielectric properties, high heat resistance, tear strength, tensile strength and mechanical strength, and good impregnation performance. It can be bonded to the high-density polyester fiber non-woven fabric of the outer layer. Improve the mechanical strength of the film, maintain good flexibility and further improve the heat resistance and thermal stability of the product.
We can customize various shapes of insulating materials according to customer needs, such as taping, slices, tube cores, etc.
2. Product information
| Name: | Polyester film polyester fiber composite material |
| Composition: | A composite material made of polyester film coated with F grade adhesive on both sides and polyester fiber paper on both sides. |
| Model: | 6641 DMD-F level |
| Color: | green |
| Thickness | 0.13-0.45 (mm) |
| Size | 1000 (mm) |
| Dribbling | More than 10mm |
| Slicing | 1000*900mm |
| Tubular | 76mm |
| Features | High temperature resistance, good dielectric properties, high heat resistance and mechanical strength. |
| Heat resistance | 155℃ |
| Customized : | Yes |
| Packing: | carton, bag |
| Store | dry place |
3. Application
The DMD composite insulating material is suitable for general type and humid tropical type electric tank insulation, turn-to-turn insulation and liner insulation for class F insulation, and can also be used as transformer coil insulation. Mainly suitable for the production and automated production of motors and electrical products.

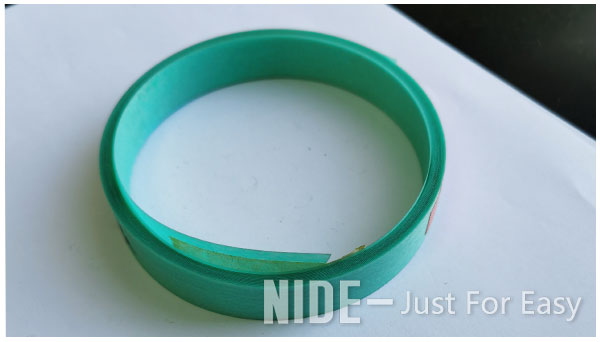

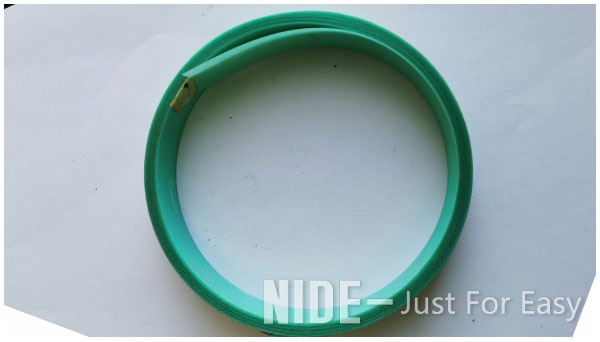

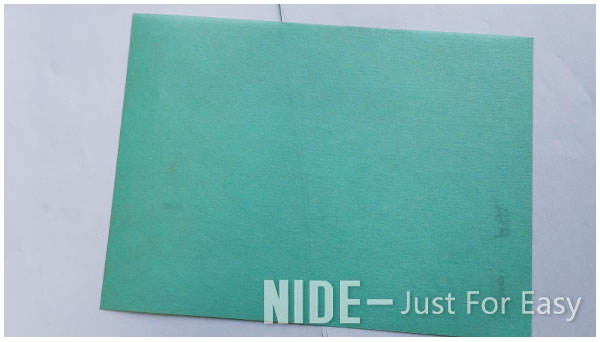

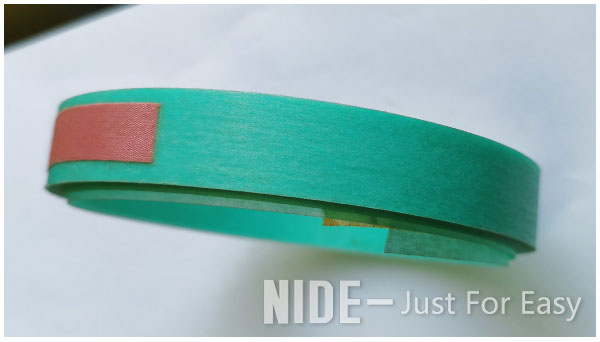

4. Picture show
NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
