Model :ND-2
Brief Introduction : The Segmented Stator Core Hot-Melting Machine is a specialized solution for the precision hot-welding of segmented stator cores used in BLDC motors, including those found in air conditioners, washing machines, and automotive applications. This machine utilizes electric heating technology, PLC control, and a touchscreen interface to ensure reliable, efficient, and high-precision bonding of stator segments into a solid circular core. With compact structure, digital temperature and time control, and broad compatibility, this equipment is ideal for automated stator assembly lines requiring high throughput and process stability.

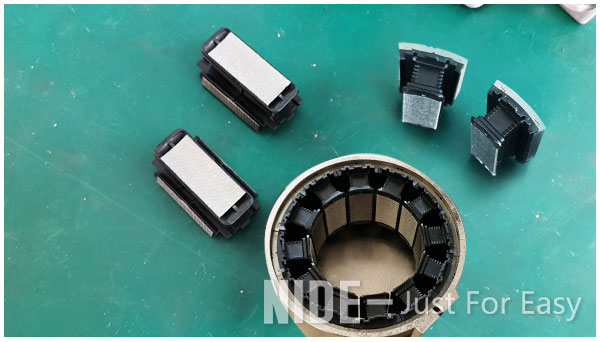

The Segmented Stator Core Hot-Melting Machine is essential equipment for the thermal bonding
of segmented stator cores into a complete circular structure. It is widely used in the production of
BLDC (Brushless DC) motors, particularly for air conditioner motors, washing machine motors, and
automotive electric motors.

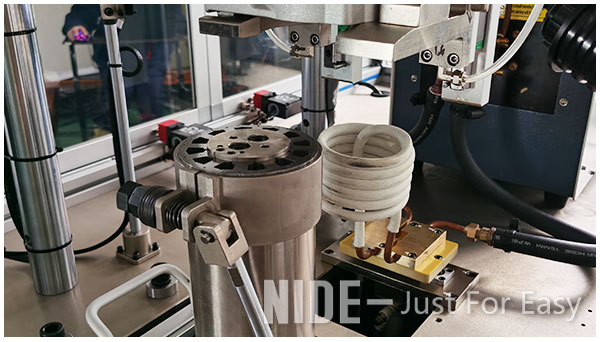

This machine adopts electric heating technology, transferring heat from the heating ring to the welding

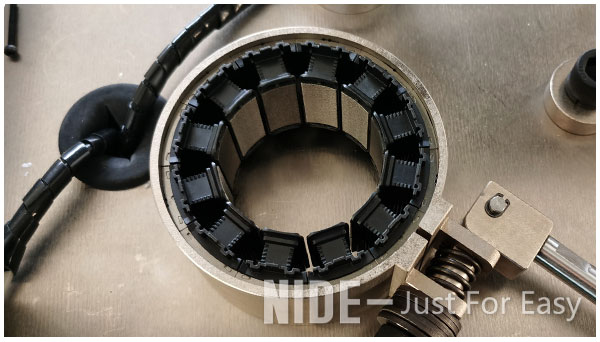

surface of the segmented stator core. The segments are precisely fused and solidified into a rigid, concentric
stator ring with stable geometry and high mechanical strength.
Controlled via a PLC system and operated through a color touchscreen HMI, the machine is user-friendly,
reliable, and adaptable to various stator segment configurations.
Low Power Consumption & Efficient Heating
Utilizes electric heating with precise temperature control, ensuring uniform heat distribution and
energy efficiency.

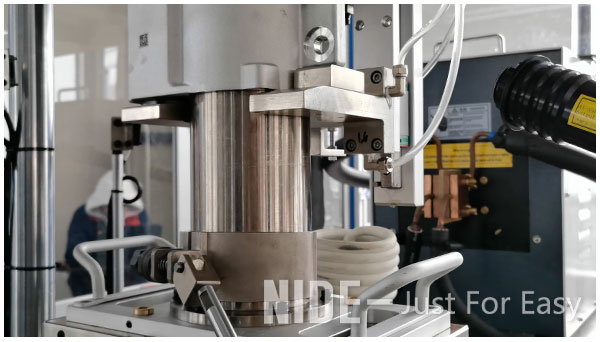

Adjustable Pressing Head Structure
The press head is horizontally adjustable, making setup and debugging simple and fast for different
core designs.
Constant Temperature Control
Equipped with a digital thermostat, allowing operators to set and monitor heating temperatures
accurately.
Programmable Time Control
A digital display time controller enables precise adjustment of crimping duration, with wide timing
flexibility to meet different welding requirements.
Wide Application Compatibility
Suitable for hot-melt welding of segmented stator cores across multiple BLDC motor types, including
appliance and automotive motors.
Compact, Space-Saving Design
The machine features a compact footprint, clean design, and optimized layout, making it ideal for
modern stator assembly lines with limited space and high production demands.
BLDC Motor Stator Assembly
HVAC Motors (Air Conditioners)
Washing Machine Motor Production
Automotive Electric Motor Manufacturing
Small Appliance Motor Manufacturing
If available, consider adding a table for:
Heating Temperature Range: e.g. 100–300°C
Stator Segment Outer Diameter Range: e.g. 60mm–200mm
Power Supply: e.g. 220V/380V, 50/60Hz
Cycle Time per Core: e.g. ≤30s
PLC Brand (if notable)
Touchscreen Size: e.g. 7” color HMI
About NIDE - Your Reliable Partner in Motor Manufacturing Equipment
NIDE Group specializes in the R&D and manufacturing of motor production machinery. We offer a full range
of solutions including standalone machines, fully automatic production lines for armature and stator, and
complete motor assembly lines. With over a decade of experience, we support clients with high-efficiency
equipment and tailored automation solutions for various motor types.
Our product portfolio also includes motor components such as commutators, ball bearings, carbon brushes,
insulation paper, shafts, magnets, cooling fans, and motor covers. In addition, NIDE provides technical consulting,
project design, and turnkey services to help clients optimize their motor manufacturing processes.
NIDE machines are widely used in the production of various motor types, including:
AC motors / DC motors / BLDC motors / universal motors / induction motors
Single-phase and three-phase motors
Common application fields:
Household appliances: washing machines, air conditioners, vacuum cleaners, electric mixers,
electric shavers, hair dryers, electric toothbrushes
Industrial equipment: pumps, compressors, power tools, fans, coolers
Automotive: electric vehicles, hub motors, alternators
NIDE helps manufacturers build efficient, automated motor production lines for both high-volume
and customized projects. More information please check our New Website: www.nidegroup.com.
Global Service & Support
NIDE offers global installation support, training, and after-sales services. Our engineering team ensures
smooth machine integration and continuous production performance. Contact us for technical consultation
for guidance on equipment selection.
