Model :NDPJ-CW-57
Brief Introduction : The Strong Neodymium Magnet has strong magnetic force and good mechanical properties, can be easily processed into various shapes.
Rectangular rare earth neodymium magnet NdFeB 15x6x3mm
The NdFeB permanent magnet material is a permanent magnet material based on the intermetallic compound NdFeB. It has a very high magnetic energy product and coercive force. At the same time, the advantages of high energy density and good rust and corrosion resistance make the NdFeB permanent magnet Materials have been widely used in modern industry and electronic technology, making it possible to miniaturize, lighten, and thin equipment such as instrumentation, electroacoustic motors, and magnetic separation and magnetization.
NdFeB Magnet Features
1. Magnetic materials with strong magnetic force are widely used and cost-effective.
2. It has good mechanical properties and can be easily processed into various shapes, including special-shaped magnets.
Cost-effective
3. Various specifications: square, square, round, disc, spherical, tile, trapezoid, diamond, special shape, etc.
4. Support customization: can be customized according to customer needs
NdFeB Magnet parameters
| Product name | Strong Neodymium Magnet |
| Size: | 15*16, 10*2, 12*2, 13*2, 15*2, 18*2, 20*2, 25*2, 18*3 |
| Coercivity | 915 (KA/m) |
| Remanence | 1.8 (T) |
| Intrinsic coercivity | 975 (KA/m) |
| Maximum energy product | 285 (KJ/m3) |
| Density | 7.5 (g/cm3) |
| Operating temperature | 80 (℃) |
| Curie temperature | 80 (℃) |
| Attention: | Be careful of fragile, careful of injury, dry and store at room temperature |

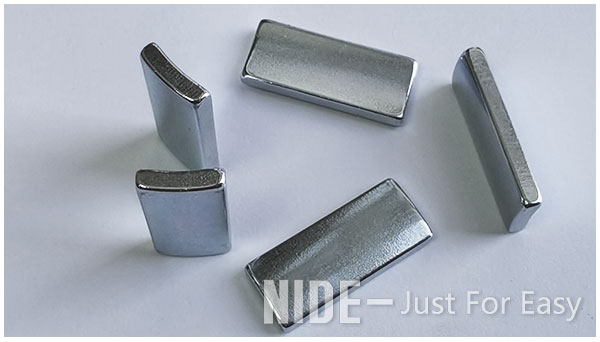

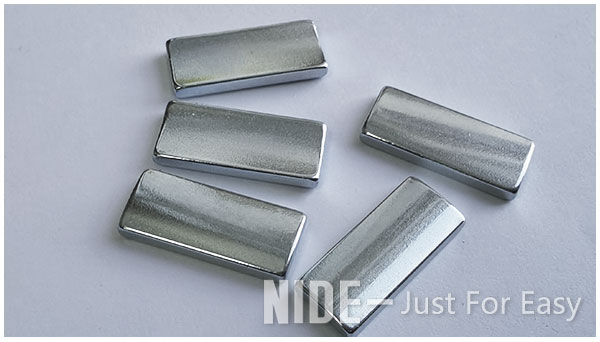

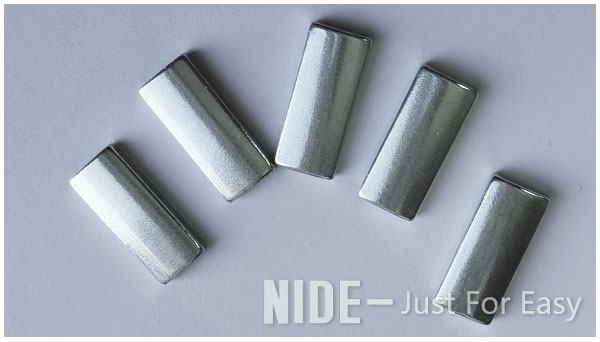

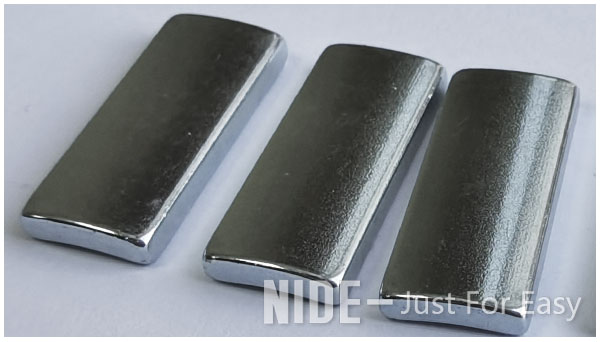

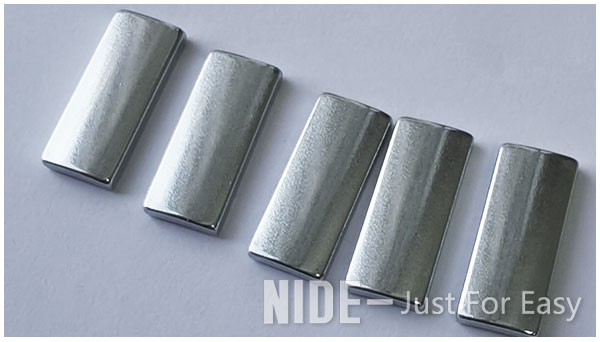

NdFeB Magnet Picture Show:
Information needed for magnet inquiry
It will be better if customer could send us detailed drawing including below information.
1. Magnet drawing
2. Magnet material
2. Magnet dimension: width, thickness, tolerance.
3. Magnet grade
4. Magnet applications
5. Required quantity: normally its weight or quantity
6. Other technical requirement.
If you are not sure which grade is proper, please contact our engineer. We can also customize according to your needs
We can offer a variety of NdFeB Magnet and Ferrite Magnet, If you need special magnetic tiles, we can also customize according to your needs.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
