Model :NDPJ-JYZ-6650
Brief Introduction : This 6650 NHN insulation paper is suitable for cables, coils, motors, generators, ballasts, dry-type transformers, high-voltage transformers, etc.
NHN 6650 Class H insulation paper 180 degree High temperature resistance motor insulation material for generator coil slot insulation wedge
1. NHN 6650 insulation paper application
This 6650 NHN insulation paper is suitable for slot insulation, turn-to-turn insulation and gasket insulation for Class H high heat resistance motor appliances , such as cables, coils, motors, generators, ballasts, etc., and is used for interlayer insulation of transformers and other electrical appliances, such as dry-type transformers, high-voltage transformers, etc.
2. NHN 6650 insulation paper technical parameters
Parameter name | Specification unit | |||
Product Name: | NHN 6650 H grade high temperature insulation paper | |||
Insulation Material Color: | Brown | |||
Insulation paper grade: | Class H , 180-200 ° C | |||
Normal adhesion: | no delamination | |||
Hot adhesion (200±2°C, 10min) | No delamination, no blistering, no glue | |||
Insulation paper thickness: | 0.15±15 MM | 0.17±15 MM | 0.20±15 MM | 0.23±15 MM |
Quantitative insulation paper: | 145 gsm | 181 gsm | 218 gsm | 286 gsm |
Nomex thickness: | 50 μm | 50 μm | 50 μm | 50 μm |
Film thickness: | 25μm | 50μm | 75μm | 125μm |
Breakdown voltage: | ≥7 KV | ≥9 KV | ≥12 KV | ≥19 KV |
Breakdown voltage after bending: | ≥ 6KV | ≥ 8 KV | ≥ 11 KV | ≥17 KV |
Pulling strength (longitudinal): | ≥ 120N/CM | ≥ 160 N/CM | ≥180N/CM | ≥200 N/CM |
Pulling strength (lateral): | ≥ 70N/CM | ≥ 90N/CM | ≥ 120N/CM | ≥ 150N/CM |
Elongation (longitudinal): | ≥15% | ≥17% | ≥17% | ≥12% |
Elongation (lateral): | ≥15% | ≥17% | ≥17% | ≥12% |
3. NHN 6650 insulation paper characteristics
a. Excellent mechanical properties: such as good tensile strength and edge tear resistance, electrical properties, dielectric properties, mechanical toughness, chemical compatibility, thermal conductivity, radiation resistance,
b. low moisture absorption rate, good moisture resistance
c. has excellent insulation properties.
d. insulating paint infiltration effect is strong.
e. Add some heat-resistant organic fiber, long-term withstand voltage at high temperature, excellent flame retardant and flame resistance, thermal stability, heat resistance and thermal conductivity.
f. the material is safe and non-toxic, and the shaping effect is excellent.
4. NHN 6650 insulation paper composition
The insulating paper is a soft three-layer composite insulating material, the middle layer is a polyimide film, and the outer two layers are NOMEX, which is mainly composed of inorganic components, polyimide film, aramid fiber paper, and adhesive, etc.
5. NHN 6650 insulation paper storage
The insulation meterial can be stored indefinitely under normal conditions.

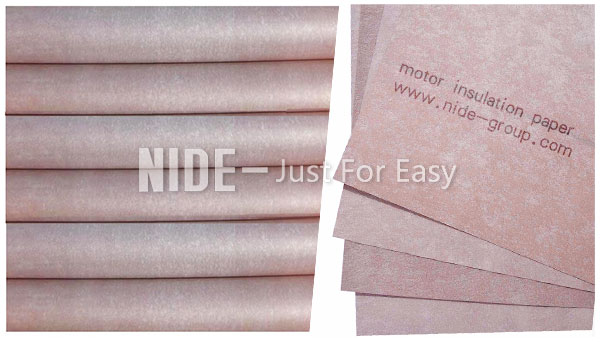

6. NHN 6650 insulation paper picture show
7. Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
