Hot sale thermal overload thermostat for motor electric motor protector

Model number:NDPJ-RBHQ-17
Introduction:

Product video

  • Specification

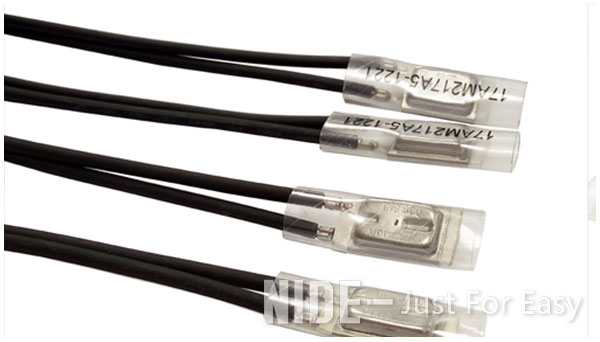

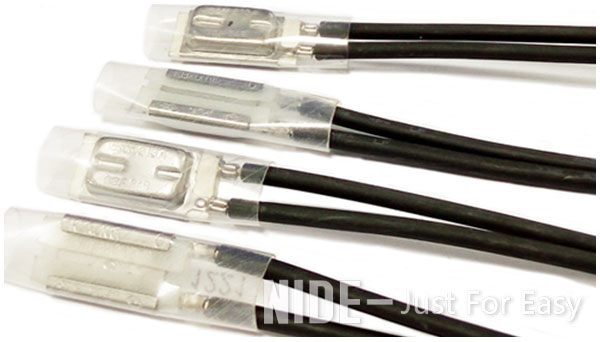

  • 17AM-D series thermal protectors are used to provide effective and reliable safety protection to motors and prevent motors from damage due to overheating. These series thermal protectors are widely applied in the industrial motor under 2HP, such as transformers, power tool, automobile, rectifiers, electro-thermal appliances, etc. With its accurate temperature control, it has double protection of current and temperature.

    Temperature specification

    Open temperature: 50~155±5, one gear per 5

    Reset temperature: it is 2/3 of standard opening temperature or specified by customers. The tolerance is 15.



    Contact capacity

    They are applicable for more than 5000 cycles under following condition.

    Voltage

    24V-DC

    125V-AC

    250V-AC

    Current

    20A

    16A

    8A



    Notice:

    The thermal protector can not sustain heavy impact during working.

    The word side is the temperature sensing surface.


    About Motor component and  accessories

    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

    motor components

    About NIDE

    Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

    motor manufacturing machine

    Our machine's application

    Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.

    motor application
