Big Coil Stator Wire Making Machine

Model number: RX4-650
Introduction: Big Coil Stator Wire Making Machine is used to wind stator coil, especially for big size dimension stators.

Product video

  • Specification
  •  Big Coil Stator Wire Making Machine is used to wind stator coil, especially for big size dimension stators.


    (1) Machine function and characteristic:
    RX4-650 Big Stator Coil Winding Machine adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. Big Stator Coil Winding Machine could produce different dimension coils which are for same series size stator by adjusting the tooling, and tension is adjustable.


    (2) Main technical parameter:

    • Wire diameter:0.3~1.5mm

    • Swing diameter: 350~650mm

    • Winding head: 1

    • Applicative frame size:200, 225, 250, 280

    • Screw stroke:400mm

    • Max RPM: 160RPM

    • Max wire number:≤20 pcs

    • Power supply:380V/50/60Hz 2.2KW

    • Air supply:0.4MPa

    • Weight:800Kg

    • Dimension: 1500*1700*1550mm


    (3) Application

    This Big Coil Winding Machine is suitable for winding the coil for big power motor.

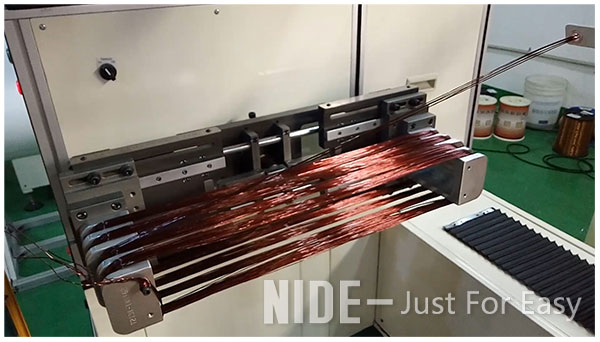

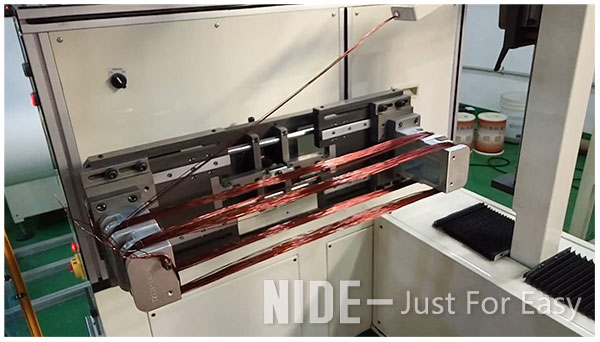

    The coil wound by this big coil wire making machine

    stator winding machine.jpg

    coil winding making machine


     The Big Coil Stator Wire Making Machine working youtube video
