Bladeless fan motor stator needle winding machine

Model number:ND-RX50B
Introduction:The motor inner stator winding machine is suitable for various types of DC brushless motors such as servo motors, electric toothbrush motors , brushless motors, stepping motors, fan motors, and bladeless fan motors.

Product video

  • Specification
  • Bladeless fan motor stator coil winding machine / BLDC stator needle winder


    Motor Winding machine application:

    The motor inner stator winding machine is suitable for various types of DC brushless motors such as servo motors, electric toothbrush motors , brushless motors, stepping motors, fan motors, and bladeless fan motors.



    Motor Winding equipment introduction:

    The brushless motor stator winding machine is suitable for the four-slot brushless motor stator coil winding, and adopts the double-station horizontal structure design . The brushless stator can automatically rotate the station after the winding of the two slots , and each stator winding requires only two processes ; the motor stator winding machine can control and process the winding process at the same time of high-speed winding, and can perform two-axis synchronous neatly arranged winding, and can achieve special processes with high winding requirements; the winding machine adopts servo precision. Positioning, automatic winding head, tail, automatic winding, automatic cable, automatic indexing, automatic clipping, to achieve the best cost performance of the equipment.



    Specification:

    Product   name :

    Double   stations Horizontal BLDC staor needle winding amchine

    Wire   dia.:

    0.15-0.7mm(can   be customized)

    Winding   speed:

    50-800  r/min

    Winding   method:

    stator   internal needle winding

    Stack-   length:

    5-60mm

    Stator   ID:

    10-50mm

    Stator   O:

    30-80mm

    Aire   pressure:

    0.5MPa~0.7 MPa

    Power:

    380V/50HZ,  three phase four wires

    Total   power:

    8.5   KW

    Dimension:

    700*900*1650mm

    Wegit   :

    ≈ 350 Kg



    BLDC winding machine Picture display :

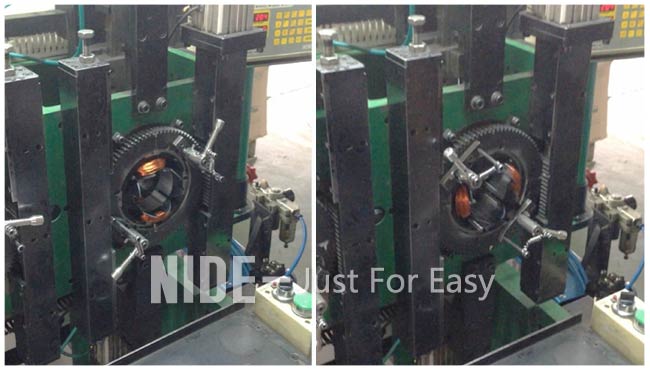

    The BLDC motor stator coil winding machine winding process 1

    BLDC stator coil winding machine

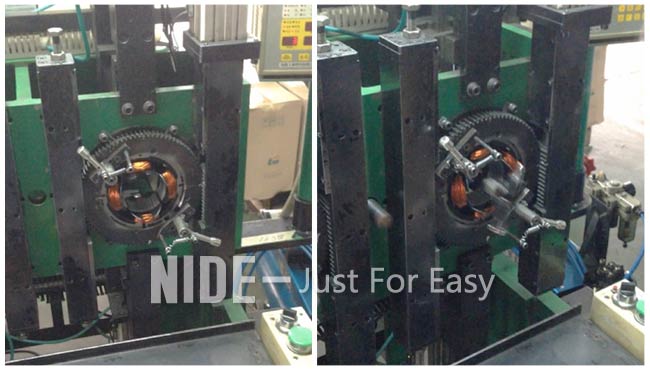

    The BLDC motor stator coil winding machine winding process 2

    fan motor stator coil winding machine

    The BLDC motor stator coil winding machine winding youtube video


    About Motor stator manufacturing

    Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

    stator manufacuturing machine

    About NIDE

    Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

    motor manufacturing machine

    Our machine's application

    Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.

    motor application
