Full auto commutator turning machine collector turner

Model number:ND-LHL-QSFA-B
Introduction:The armature rotor commutator turning machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.

Product video

  • Specification
  • Fully auto armature commutator precision turning machine collector turner lathe machine


    (1) Machine function and characteristic

    Equipped with lubrication device and aluminum alloy frame, this armature commutator turning machine features advance technology and modern shape, has easy operation system and self-checking system.

    Meanwhile, this commutator turner can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control the turning lathe. Cutter feeding and cutting is controlled by servo motor.Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block.



    (2)Applications:

    The rotor commutator turning machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.


    (3) Main technical data:

    Production name:Fully automatic Motor rotor commutator turning machine

    Concentricity:≤0.0025-0.003mm

    Roundness between bars:≤0.0015-0.002mm

    Armature diameter range:20~60mm

    Surface roughness;≤Ra 0.40

    Shaft length range:50~250mm

    Armature shaft diameter range:3~12mm

    Commutator O.D. range:12~42mm

    Weight each cutting:Max 0.12mm

    Speed frequency range:0~90Hz

    Control:PLC system

    Cutting speed:PLC adjustable

    Efficiency:Cycle≤10s per pc

    Air pressure:4~6kg/cm2

    Fixture:Diamond V block

    Motor Power:6KW

    Frequency:50/60Hz

    Weight:1100Kg

    Voltage:AC380V±10%

    Machine dimension:850mm x 950 mm x 1,830mm


    (4) The commutator turner picture show:

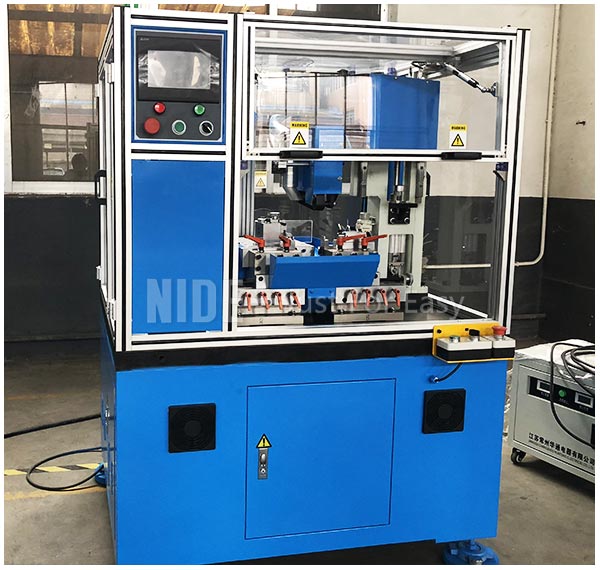

    1.The front of the commutator turning machine

    commutator turning machine

    2.The Side of the commutator turning machine

    rotor commutator turning lathe machine

    3.The Work area details of the commutator turning machine

    armature commutator turning lathe machine

    rotor commutator turning lathe machine

    (5) The commutator turner youtube video:


    About Motor armature manufacturing

    Motor armature / rotor manufacturing production assembly line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine, ball bearing inserting machine, and worm shaft inserting, NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
