Automatic Stator End Coil Lacing Machine

Model number:BXSIIL1-160/160-4
Introduction:This stator coil lacing machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.

Product video

  • Specification
  • This stator coil lacing machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.


    (1) Technical data

    • Stator ID: 40~100mm

    • Stator OD: Max. 160mm

    • Stack length: 30~160mm

    • Over-hang height: Max. 45mm

    • Lacing mode: slot by slot/ interval slot/ fancy lacing

    • Lacing speed: 0.5s/s

    • Power: 380V/50/60HZ 3.5KW

    • Machine weight: about 600kg

    • Machine dimension: L1500*W650*H1700mm


    (2) Application

    It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.



    (3) Machine main function and characteristic

    • This machine adopts servo driven system, CNC control design and HIM program.

    • The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

    • Main spindle adopts servo control system. The rotation speed can be set.

    • Two needles driven by servo system lace upper and lower coil simultaneously.

    • Machine can automatically feed thread and cut thread. There is no need to tie a knot.

    • Tooling change is fast and convenient. Stator stack length range is 50-130mm.

    • Lacing tension can be set,

    • Production capacity  ≤1s/slot.

    • Should be no copper wire snap and wire enamel broken.

    • Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

    • his machine adopts safety grating protection system. Operator need to stand when operating.

    • Machine adopts two hands simultaneously start button to ensure safety.

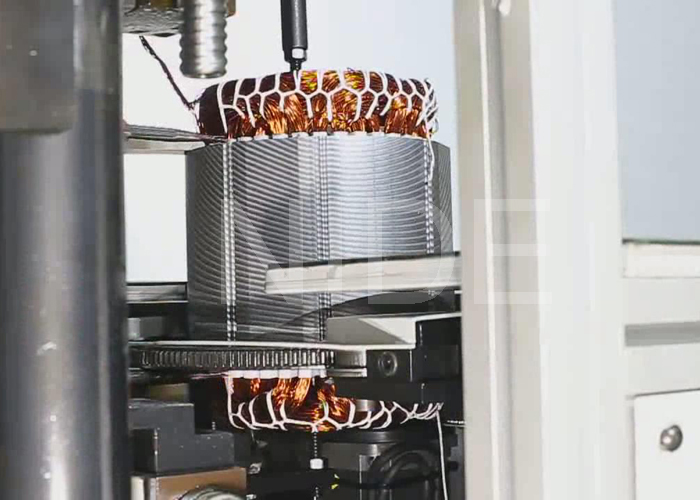

    The two needle is doing lacing.


    stator coil lacing machine.jpg


    The Automatic  Stator End Coil Lacing Machine working video

    About Motor stator manufacturing

    Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

    stator manufacuturing machine
