Nide stator automatic assembly line can be used for different motor types, such as BLDC, pump motor, car motor, induction motor, 3 phase motor ect. This stator assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.
This automatic stator production line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.

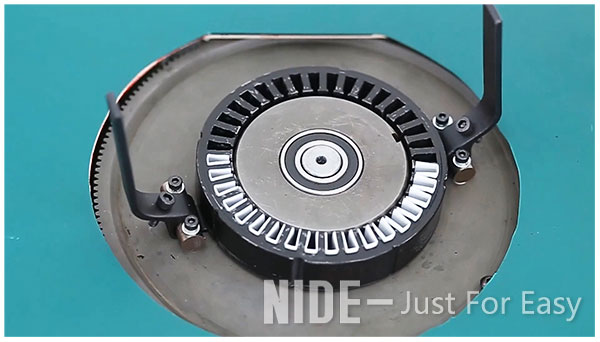

There are serval type of paper inserting machine which can meet various requirement. Theproduction capacity ≤1s/slot (exclude the loading/unloading time). Primary qualification rate ≥99%, after rework, the rate ≥99.9%
For the coil winding machine, it covers a wide range of stator dimension and wire diameter. meeting the various requirement. The most efficient coil winding machine of this stator production machine line is equipped with four winding heads and eight operation stations. high slot filling rate, small slot opening stator coil winding. Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively, parameter could be set in human-machine interface. Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.

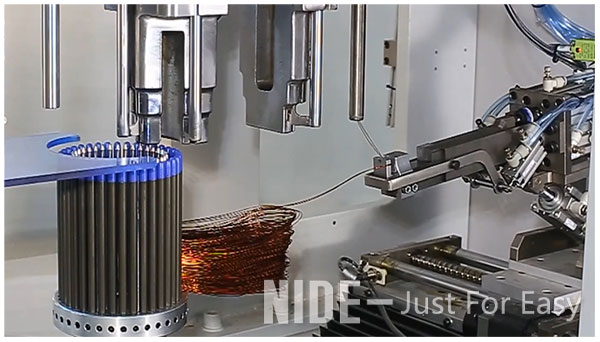

Coil winding inserting machine can insert stator coil and wedge into the stator slot automatically. It reduces the labor and improve the efficiency and accuracy.This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer). For the wire, both copper wire and alum wire are OK.

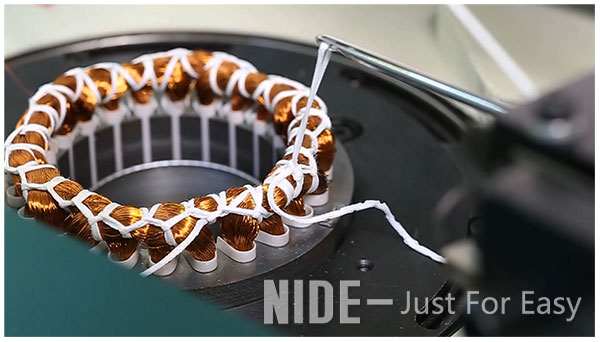

The lacing machine is controlled by PLC. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing. Tooling change is fast and convenient. There are single lacing machine, doulble station lacing machine and horizontal lacing machine.

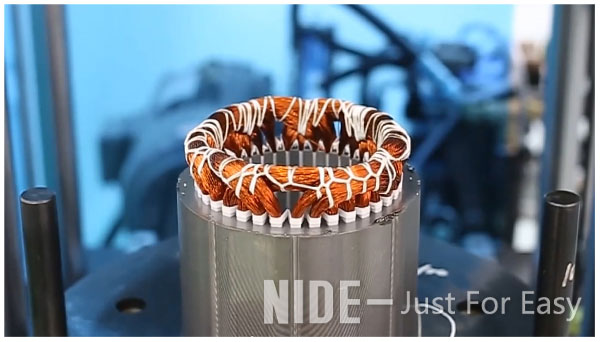

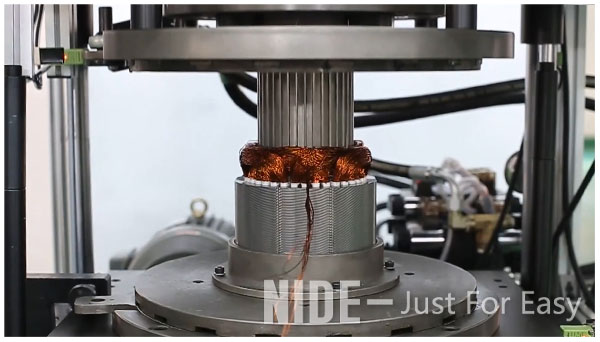

The forming machine is used to do coil forming. Before lacing, the stator coil should do one time forming as it can be better to do lacing. After lacing, the stator coil should do final forming. Production capacity ≤14s/set (exclude loading/unloading time)

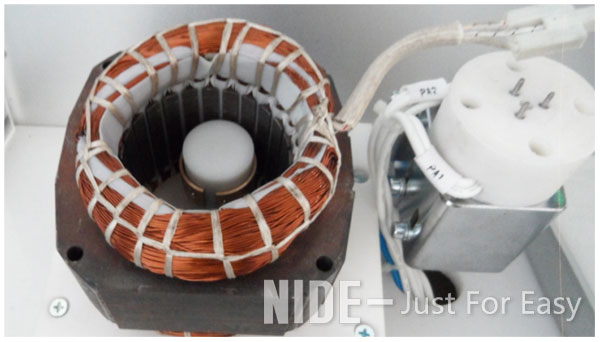

After all the above step, the stator production process is finished. Now it needs to do testing to check if it is qualified. The testing machine can test resistance, hi-pot, insulation resistance ect.
About Motor stator manufacturing
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machine's application
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
