Horizontal Type Long Stator Coils Forming Machine

Model number:Z2XW1-600/160
Introduction:This middle forming forming machine is easy to load and unload the stators due to its horizontal type structure. The coil shape dimension can be customized.

Product video

  • Specification
  • This middle forming forming machine is easy to load and unload the stators due to its horizontal type structure. The coil shape dimension can be customized.


    (1) Main technical data

    Stator OD:≤300mm

    Stator ID:≤200mm

    Stack Height:≤400mm
    Height of Coil:≤70mm

    Pitch time:≤30s/pc

    Displacement of Cylinder:50L/min

    Power supply:380V   50/60Hz 4Kw

    Weight ≈2500Kg

    Dimension:(L)4400×(W)1850×(H)1350mm


    (2) Application

    The stator coil forming machine is applied to deep water pump motor and other various type of big dimension and long stator.


    (3)  Machine mainfunction and characteristic

    This machine is suitable for big power stator, long stack length stator(deep-well pump stator) or other big dimension stator. It is horizontal type with a auto slider. Stator can be moved by lifting device. Tooling adopts flexible principles of inner expansion, outer wrapping and edge forming. It is controlled by PLC. The parameter can be set in the HMI.


    (4)  Picture show

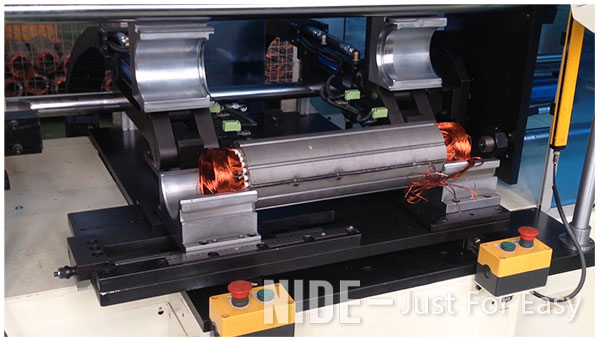

    Horizontal Type Long Stator Coils Forming Machine for deep well pump motor-1

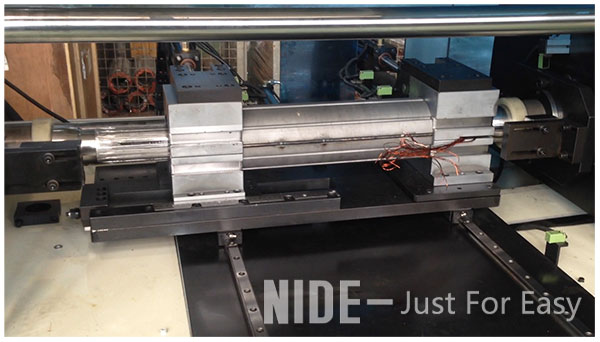

    Horizontal Type Long Stator Coils Forming Machine for deep well pump motor-2

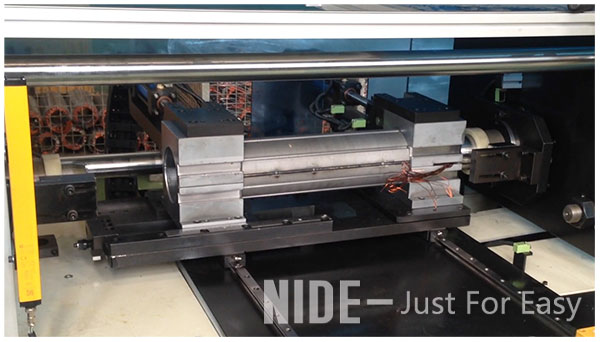

    Horizontal Type Long Stator Coils Forming Machine for deep well pump motor-3

    The Horizontal Type big Stator Coils Forming Machine working video

    About Motor stator manufacturing

    Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
