Dynamic Weight Adding Armature Balancing Machine

Model number: ND-DH-5Z
Introduction:This type of armature balancing machine can test the unbalancing weight and it do the balancing by weight adding process.

Product video

  • Specification
  • This type of armature balancing machine can test the unbalancing weight and it do the balancing by weight adding process.


    (1) Machine function and characteristic

    This machine automatically measures the unbalancing amount of the armature, automatically stops the armature at the unbalancing position

    No need to mark on the armature (such as reflective sheet, black mark an so on)

    Imbalance point positioning automatically

    Low operation skill requirement to staff

    Reduce the complexity of the machine operation

    PLC control.

    Operator needs to stick the balancing mud onto the unbalancing position manually.


    (2) Main technical data:

    • Armature lamination length:10~200mm

    • Armature diameter range;Max 200mm

    • Armature weight:0.1~1.6Kg

    • Unbalancing value;0~600g.mm/kg

    • Driving method:Belt

    • Power:220V

    • Balancing speed;900~500rpm



    (3) Applications:
    The machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.

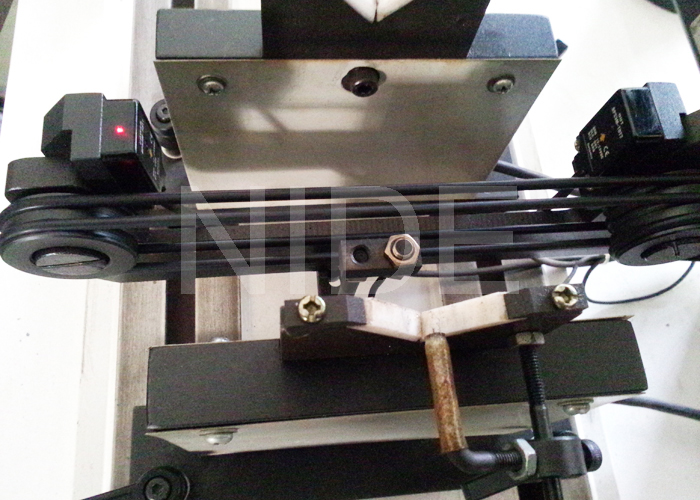

    the working station. Armature should be put on the belt. Then it will do the balancing,and the unbalancing value will be displayed in the touch screen.

    armature positioning machine.jpg
